LINEAR

6530

Download

Data sheet

- Download (997.82KB)

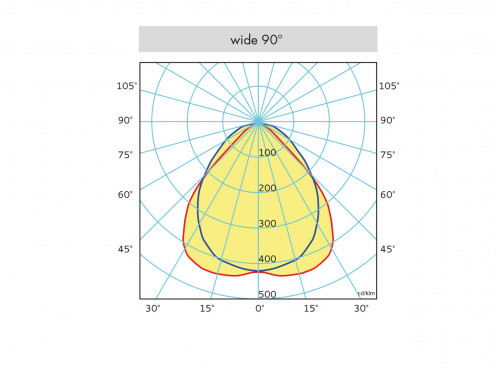

Photometries

- Download (2.61MB)

Ask for information

Reset

Dimension	Optics	CRI	K	Watt	Lumen In	Lumen Out	Color	Cod. EL	Cod. DALI	Cod. EM

48x575	60°	80	3000	16	2790	2595	B	6530603W0575E0B	6530603W0575DDB	-
48x575	60°	80	4000	16	2950	2744	B	6530603N0575E0B	6530603N0575DDB	-
48x1135	60°	80	3000	31	5580	5189	B	6530603W1135E0B	6530603W1135DDB	6530603W1135EMB
48x1135	60°	80	4000	31	5900	5487	B	6530603N1135E0B	6530603N1135DDB	6530603N1135EMB
48x1695	60°	80	3000	47	8370	7784	B	6530603W1695E0B	6530603W1695DDB	6530603W1695EMB
48x1695	60°	80	4000	47	8850	8231	B	6530603N1695E0B	6530603N1695DDB	6530603N1695EMB
48x2255	60°	80	3000	63	11160	10379	B	6530603W2255E0B	6530603W2255DDB	6530603W2255EMB
48x2255	60°	80	4000	63	11800	10974	B	6530603N2255E0B	6530603N2255DDB	6530603N2255EMB
48x2815	60°	80	3000	79	13950	12974	B	6530603W2815E0B	6530603W2815DDB	6530603W2815EMB
48x2815	60°	80	4000	79	14750	13718	B	6530603N2815E0B	6530603N2815DDB	6530603N2815EMB
48x3375	60°	80	3000	94	16740	15568	B	6530603W3375E0B	6530603W3375DDB	6530603W3375EMB
48x3375	60°	80	4000	94	17700	16461	B	6530603N3375E0B	6530603N3375DDB	6530603N3375EMB
48x575	60°	80	3000	23	3920	3646	B	6530605W0575E0B	6530605W0575DDB	-
48x575	60°	80	4000	23	4145	3855	B	6530605N0575E0B	6530605N0575DDB	-
48x1135	60°	80	3000	47	7840	7291	B	6530605W1135E0B	6530605W1135DDB	6530605W1135EMB
48x1135	60°	80	4000	47	8290	7710	B	6530605N1135E0B	6530605N1135DDB	6530605N1135EMB
48x1695	60°	80	3000	70	11760	10937	B	6530605W1695E0B	6530605W1695DDB	6530605W1695EMB
48x1695	60°	80	4000	70	12435	11565	B	6530605N1695E0B	6530605N1695DDB	6530605N1695EMB
48x2255	60°	80	3000	93	15680	14582	B	6530605W2255E0B	6530605W2255DDB	6530605W2255EMB
48x2255	60°	80	4000	93	16580	15419	B	6530605N2255E0B	6530605N2255DDB	6530605N2255EMB
48x2815	60°	80	3000	117	19600	18228	B	6530605W2815E0B	6530605W2815DDB	6530605W2815EMB
48x2815	60°	80	4000	117	20725	19274	B	6530605N2815E0B	6530605N2815DDB	6530605N2815EMB
48x3375	60°	80	3000	140	23520	21874	B	6530605W3375E0B	6530605W3375DDB	6530605W3375EMB
48x3375	60°	80	4000	140	24870	23129	B	6530605N3375E0B	6530605N3375DDB	6530605N3375EMB
48x575	90°	80	3000	16	2790	2595	B	6530903W0575E0B	6530903W0575DDB	-
48x575	90°	80	4000	16	2950	2744	B	6530903N0575E0B	6530903N0575DDB	-
48x1135	90°	80	3000	31	5580	5189	B	6530903W1135E0B	6530903W1135DDB	6530903W1135EMB
48x1135	90°	80	4000	31	5900	5487	B	6530903N1135E0B	6530903N1135DDB	6530903N1135EMB
48x1695	90°	80	3000	47	8370	7784	B	6530903W1695E0B	6530903W1695DDB	6530903W1695EMB
48x1695	90°	80	4000	47	8850	8231	B	6530903N1695E0B	6530903N1695DDB	6530903N1695EMB
48x2255	90°	80	3000	63	11160	10379	B	6530903W2255E0B	6530903W2255DDB	6530903W2255EMB
48x2255	90°	80	4000	63	11800	10974	B	6530903N2255E0B	6530903N2255DDB	6530903N2255EMB
48x2815	90°	80	3000	79	13950	12974	B	6530903W2815E0B	6530903W2815DDB	6530903W2815EMB
48x2815	90°	80	4000	79	14750	13718	B	6530903N2815E0B	6530903N2815DDB	6530903N2815EMB
48x3375	90°	80	3000	94	16740	15568	B	6530905W3375E0B	6530905W3375DDB	6530905W3375EMB
48x3375	90°	80	4000	94	17700	16461	B	6530905N3375E0B	6530905N3375DDB	6530905N3375EMB
48x575	90°	80	3000	23	3920	3646	B	6530905W0575E0B	6530905W0575DDB	-
48x575	90°	80	4000	23	4145	3855	B	6530905N0575E0B	6530905N0575DDB	-
48x1135	90°	80	3000	47	7840	7291	B	6530905W1135E0B	6530905W1135DDB	6530905W1135EMB
48x1135	90°	80	4000	47	8290	7710	B	6530905N1135E0B	6530905N1135DDB	6530905N1135EMB
48x1695	90°	80	3000	70	11760	10937	B	6530905W1695E0B	6530905W1695DDB	6530905W1695EMB
48x1695	90°	80	4000	70	12435	11565	B	6530905N1695E0B	6530905N1695DDB	6530905N1695EMB
48x2255	90°	80	3000	93	15680	14582	B	6530905W2255E0B	6530905W2255DDB	6530905W2255EMB
48x2255	90°	80	4000	93	16580	15419	B	6530905N2255E0B	6530905N2255DDB	6530905N2255EMB
48x2815	90°	80	3000	117	19600	18228	B	6530905W2815E0B	6530905W2815DDB	6530905W2815EMB
48x2815	90°	80	4000	117	20725	19274	B	6530905N2815E0B	6530905N2815DDB	6530905N2815EMB
48x3375	90°	80	3000	140	23520	21874	B	6530905W3375E0B	6530905W3375DDB	6530905W3375EMB
48x3375	90°	80	4000	140	24870	23129	B	6530905N3375E0B	6530905N3375DDB	6530905N3375EMB
48x575	EW	80	3000	16	2790	2595	B	6530EW3W0575E0B	6530EW3W0575DDB	-
48x575	EW	80	4000	16	2950	2744	B	6530EW3N0575E0B	6530EW3N0575DDB	-
48x1135	EW	80	3000	31	5580	5189	B	6530EW3W1135E0B	6530EW3W1135DDB	6530EW3W1135EMB
48x1135	EW	80	4000	31	5900	5487	B	6530EW3N1135E0B	6530EW3N1135DDB	6530EW3N1135EMB
48x1695	EW	80	3000	47	8370	7784	B	6530EW3W1695E0B	6530EW3W1695DDB	6530EW3W1695EMB
48x1695	EW	80	4000	47	8850	8231	B	6530EW3N1695E0B	6530EW3N1695DDB	6530EW3N1695EMB
48x2255	EW	80	3000	63	11160	10379	B	6530EW3W2255E0B	6530EW3W2255DDB	6530EW3W2255EMB
48x2255	EW	80	4000	63	11800	10974	B	6530EW3N2255E0B	6530EW3N2255DDB	6530EW3N2255EMB
48x2815	EW	80	3000	79	13950	12974	B	6530EW3W2815E0B	6530EW3W2815DDB	6530EW3W2815EMB
48x2815	EW	80	4000	79	14750	13718	B	6530EW3N2815E0B	6530EW3N2815DDB	6530EW3N2815EMB
48x3375	EW	80	3000	94	16740	15568	B	6530EW5W3375E0B	6530EW5W3375DDB	6530EW5W3375EMB
48x3375	EW	80	4000	94	17700	16461	B	6530EW5N3375E0B	6530EW5N3375DDB	6530EW5N3375EMB
48x575	EW	80	3000	23	3920	3646	B	6530EW5W0575E0B	6530EW5W0575DDB	-
48x575	EW	80	4000	23	4145	3855	B	6530EW5N0575E0B	6530EW5N0575DDB	-
48x1135	EW	80	3000	47	7840	7291	B	6530EW5W1135E0B	6530EW5W1135DDB	6530EW5W1135EMB
48x1135	EW	80	4000	47	8290	7710	B	6530EW5N1135E0B	6530EW5N1135DDB	6530EW5N1135EMB
48x1695	EW	80	3000	70	11760	10937	B	6530EW5W1695E0B	6530EW5W1695DDB	6530EW5W1695EMB
48x1695	EW	80	4000	70	12435	11565	B	6530EW5N1695E0B	6530EW5N1695DDB	6530EW5N1695EMB
48x2255	EW	80	3000	93	15680	14582	B	6530EW5W2255E0B	6530EW5W2255DDB	6530EW5W2255EMB
48x2255	EW	80	4000	93	16580	15419	B	6530EW5N2255E0B	6530EW5N2255DDB	6530EW5N2255EMB
48x2815	EW	80	3000	117	19600	18228	B	6530EW5W2815E0B	6530EW5W2815DDB	6530EW5W2815EMB
48x2815	EW	80	4000	117	20725	19274	B	6530EW5N2815E0B	6530EW5N2815DDB	6530EW5N2815EMB
48x3375	EW	80	3000	140	23520	21874	B	6530EW5W3375E0B	6530EW5W3375DDB	6530EW5W3375EMB
48x3375	EW	80	4000	140	24870	23129	B	6530EW5N3375E0B	6530EW5N3375DDB	6530EW5N3375EMB
48x575	RA	80	3000	16	2790	2595	B	6530RA3W0575E0B	6530RA3W0575DDB	-
48x575	RA	80	4000	16	2950	2744	B	6530RA3N0575E0B	6530RA3N0575DDB	-
48x1135	RA	80	3000	31	5580	5189	B	6530RA3W1135E0B	6530RA3W1135DDB	6530RA3W1135EMB
48x1135	RA	80	4000	31	5900	5487	B	6530RA3N1135E0B	6530RA3N1135DDB	6530RA3N1135EMB
48x1695	RA	80	3000	47	8370	7784	B	6530RA3W1695E0B	6530RA3W1695DDB	6530RA3W1695EMB
48x1695	RA	80	4000	47	8850	8231	B	6530RA3N1695E0B	6530RA3N1695DDB	6530RA3N1695EMB
48x2255	RA	80	3000	63	11160	10379	B	6530RA3W2255E0B	6530RA3W2255DDB	6530RA3W2255EMB
48x2255	RA	80	4000	63	11800	10974	B	6530RA3N2255E0B	6530RA3N2255DDB	6530RA3N2255EMB
48x2815	RA	80	3000	79	13950	12974	B	6530RA3W2815E0B	6530RA3W2815DDB	6530RA3W2815EMB
48x2815	RA	80	4000	79	14750	13718	B	6530RA3N2815E0B	6530RA3N2815DDB	6530RA3N2815EMB
48x3375	RA	80	3000	94	16740	15568	B	6530RA5W3375E0B	6530RA5W3375DDB	6530RA5W3375EMB
48x3375	RA	80	4000	94	17700	16461	B	6530RA5N3375E0B	6530RA5N3375DDB	6530RA5N3375EMB
48x575	RA	80	3000	23	3920	3646	B	6530RA5W0575E0B	6530RA5W0575DDB	-
48x575	RA	80	4000	23	4145	3855	B	6530RA5N0575E0B	6530RA5N0575DDB	-
48x1135	RA	80	3000	47	7840	7291	B	6530RA5W1135E0B	6530RA5W1135DDB	6530RA5W1135EMB
48x1135	RA	80	4000	47	8290	7710	B	6530RA5N1135E0B	6530RA5N1135DDB	6530RA5N1135EMB
48x1695	RA	80	3000	70	11760	10937	B	6530RA5W1695E0B	6530RA5W1695DDB	6530RA5W1695EMB
48x1695	RA	80	4000	70	12435	11565	B	6530RA5N1695E0B	6530RA5N1695DDB	6530RA5N1695EMB
48x2255	RA	80	3000	93	15680	14582	B	6530RA5W2255E0B	6530RA5W2255DDB	6530RA5W2255EMB
48x2255	RA	80	4000	93	16580	15419	B	6530RA5N2255E0B	6530RA5N2255DDB	6530RA5N2255EMB
48x2815	RA	80	3000	117	19600	18228	B	6530RA5W2815E0B	6530RA5W2815DDB	6530RA5W2815EMB
48x2815	RA	80	4000	117	20725	19274	B	6530RA5N2815E0B	6530RA5N2815DDB	6530RA5N2815EMB
48x3375	RA	80	3000	140	23520	21874	B	6530RA5W3375E0B	6530RA5W3375DDB	6530RA5W3375EMB
48x3375	RA	80	4000	140	24870	23129	B	6530RA5N3375E0B	6530RA5N3375DDB	6530RA5N3375EMB
48x575	RS	80	3000	16	2790	2595	B	6530RS3W0575E0B	6530RS3W0575DDB	-
48x575	RS	80	4000	16	2950	2744	B	6530RS3N0575E0B	6530RS3N0575DDB	-
48x1135	RS	80	3000	31	5580	5189	B	6530RS3W1135E0B	6530RS3W1135DDB	6530RS3W1135EMB
48x1135	RS	80	4000	31	5900	5487	B	6530RS3N1135E0B	6530RS3N1135DDB	6530RS3N1135EMB
48x1695	RS	80	3000	47	8370	7784	B	6530RS3W1695E0B	6530RS3W1695DDB	6530RS3W1695EMB
48x1695	RS	80	4000	47	8850	8231	B	6530RS3N1695E0B	6530RS3N1695DDB	6530RS3N1695EMB
48x2255	RS	80	3000	63	11160	10379	B	6530RS3W2255E0B	6530RS3W2255DDB	6530RS3W2255EMB
48x2255	RS	80	4000	63	11800	10974	B	6530RS3N2255E0B	6530RS3N2255DDB	6530RS3N2255EMB
48x2815	RS	80	3000	79	13950	12974	B	6530RS3W2815E0B	6530RS3W2815DDB	6530RS3W2815EMB
48x2815	RS	80	4000	79	14750	13718	B	6530RS3N2815E0B	6530RS3N2815DDB	6530RS3N2815EMB
48x3375	RS	80	3000	94	16740	15568	B	6530RS5W3375E0B	6530RS5W3375DDB	6530RS5W3375EMB
48x3375	RS	80	4000	94	17700	16461	B	6530RS5N3375E0B	6530RS5N3375DDB	6530RS5N3375EMB
48x575	RS	80	3000	23	3920	3646	B	6530RS5W0575E0B	6530RS5W0575DDB	-
48x575	RS	80	4000	23	4145	3855	B	6530RS5N0575E0B	6530RS5N0575DDB	-
48x1135	RS	80	3000	47	7840	7291	B	6530RS5W1135E0B	6530RS5W1135DDB	6530RS5W1135EMB
48x1135	RS	80	4000	47	8290	7710	B	6530RS5N1135E0B	6530RS5N1135DDB	6530RS5N1135EMB
48x1695	RS	80	3000	70	11760	10937	B	6530RS5W1695E0B	6530RS5W1695DDB	6530RS5W1695EMB
48x1695	RS	80	4000	70	12435	11565	B	6530RS5N1695E0B	6530RS5N1695DDB	6530RS5N1695EMB
48x2255	RS	80	3000	93	15680	14582	B	6530RS5W2255E0B	6530RS5W2255DDB	6530RS5W2255EMB
48x2255	RS	80	4000	93	16580	15419	B	6530RS5N2255E0B	6530RS5N2255DDB	6530RS5N2255EMB
48x2815	RS	80	3000	117	19600	18228	B	6530RS5W2815E0B	6530RS5W2815DDB	6530RS5W2815EMB
48x2815	RS	80	4000	117	20725	19274	B	6530RS5N2815E0B	6530RS5N2815DDB	6530RS5N2815EMB
48x3375	RS	80	3000	140	23520	21874	B	6530RS5W3375E0B	6530RS5W3375DDB	6530RS5W3375EMB
48x3375	RS	80	4000	140	24870	23129	B	6530RS5N3375E0B	6530RS5N3375DDB	6530RS5N3375EMB
48x575	60°	80	3000	16	2790	2595	N	6530603W0575E0N	6530603W0575DDN	-
48x575	60°	80	4000	16	2950	2744	N	6530603N0575E0N	6530603N0575DDN	-
48x1135	60°	80	3000	31	5580	5189	N	6530603W1135E0N	6530603W1135DDN	6530603W1135EMN
48x1135	60°	80	4000	31	5900	5487	N	6530603N1135E0N	6530603N1135DDN	6530603N1135EMN
48x1695	60°	80	3000	47	8370	7784	N	6530603W1695E0N	6530603W1695DDN	6530603W1695EMN
48x1695	60°	80	4000	47	8850	8231	N	6530603N1695E0N	6530603N1695DDN	6530603N1695EMN
48x2255	60°	80	3000	63	11160	10379	N	6530603W2255E0N	6530603W2255DDN	6530603W2255EMN
48x2255	60°	80	4000	63	11800	10974	N	6530603N2255E0N	6530603N2255DDN	6530603N2255EMN
48x2815	60°	80	3000	79	13950	12974	N	6530603W2815E0N	6530603W2815DDN	6530603W2815EMN
48x2815	60°	80	4000	79	14750	13718	N	6530603N2815E0N	6530603N2815DDN	6530603N2815EMN
48x3375	60°	80	3000	94	16740	15568	N	6530603W3375E0N	6530603W3375DDN	6530603W3375EMN
48x3375	60°	80	4000	94	17700	16461	N	6530603N3375E0N	6530603N3375DDN	6530603N3375EMN
48x575	60°	80	3000	23	3920	3646	N	6530605W0575E0N	6530605W0575DDN	-
48x575	60°	80	4000	23	4145	3855	N	6530605N0575E0N	6530605N0575DDN	-
48x1135	60°	80	3000	47	7840	7291	N	6530605W1135E0N	6530605W1135DDN	6530605W1135EMN
48x1135	60°	80	4000	47	8290	7710	N	6530605N1135E0N	6530605N1135DDN	6530605N1135EMN
48x1695	60°	80	3000	70	11760	10937	N	6530605W1695E0N	6530605W1695DDN	6530605W1695EMN
48x1695	60°	80	4000	70	12435	11565	N	6530605N1695E0N	6530605N1695DDN	6530605N1695EMN
48x2255	60°	80	3000	93	15680	14582	N	6530605W2255E0N	6530605W2255DDN	6530605W2255EMN
48x2255	60°	80	4000	93	16580	15419	N	6530605N2255E0N	6530605N2255DDN	6530605N2255EMN
48x2815	60°	80	3000	117	19600	18228	N	6530605W2815E0N	6530605W2815DDN	6530605W2815EMN
48x2815	60°	80	4000	117	20725	19274	N	6530605N2815E0N	6530605N2815DDN	6530605N2815EMN
48x3375	60°	80	3000	140	23520	21874	N	6530605W3375E0N	6530605W3375DDN	6530605W3375EMN
48x3375	60°	80	4000	140	24870	23129	N	6530605N3375E0N	6530605N3375DDN	6530605N3375EMN
48x575	90°	80	3000	16	2790	2595	N	6530903W0575E0N	6530903W0575DDN	-
48x575	90°	80	4000	16	2950	2744	N	6530903N0575E0N	6530903N0575DDN	-
48x1135	90°	80	3000	31	5580	5189	N	6530903W1135E0N	6530903W1135DDN	6530903W1135EMN
48x1135	90°	80	4000	31	5900	5487	N	6530903N1135E0N	6530903N1135DDN	6530903N1135EMN
48x1695	90°	80	3000	47	8370	7784	N	6530903W1695E0N	6530903W1695DDN	6530903W1695EMN
48x1695	90°	80	4000	47	8850	8231	N	6530903N1695E0N	6530903N1695DDN	6530903N1695EMN
48x2255	90°	80	3000	63	11160	10379	N	6530903W2255E0N	6530903W2255DDN	6530903W2255EMN
48x2255	90°	80	4000	63	11800	10974	N	6530903N2255E0N	6530903N2255DDN	6530903N2255EMN
48x2815	90°	80	3000	79	13950	12974	N	6530903W2815E0N	6530903W2815DDN	6530903W2815EMN
48x2815	90°	80	4000	79	14750	13718	N	6530903N2815E0N	6530903N2815DDN	6530903N2815EMN
48x3375	90°	80	3000	94	16740	15568	N	6530905W3375E0N	6530905W3375DDN	6530905W3375EMN
48x3375	90°	80	4000	94	17700	16461	N	6530905N3375E0N	6530905N3375DDN	6530905N3375EMN
48x575	90°	80	3000	23	3920	3646	N	6530905W0575E0N	6530905W0575DDN	-
48x575	90°	80	4000	23	4145	3855	N	6530905N0575E0N	6530905N0575DDN	-
48x1135	90°	80	3000	47	7840	7291	N	6530905W1135E0N	6530905W1135DDN	6530905W1135EMN
48x1135	90°	80	4000	47	8290	7710	N	6530905N1135E0N	6530905N1135DDN	6530905N1135EMN
48x1695	90°	80	3000	70	11760	10937	N	6530905W1695E0N	6530905W1695DDN	6530905W1695EMN
48x1695	90°	80	4000	70	12435	11565	N	6530905N1695E0N	6530905N1695DDN	6530905N1695EMN
48x2255	90°	80	3000	93	15680	14582	N	6530905W2255E0N	6530905W2255DDN	6530905W2255EMN
48x2255	90°	80	4000	93	16580	15419	N	6530905N2255E0N	6530905N2255DDN	6530905N2255EMN
48x2815	90°	80	3000	117	19600	18228	N	6530905W2815E0N	6530905W2815DDN	6530905W2815EMN
48x2815	90°	80	4000	117	20725	19274	N	6530905N2815E0N	6530905N2815DDN	6530905N2815EMN
48x3375	90°	80	3000	140	23520	21874	N	6530905W3375E0N	6530905W3375DDN	6530905W3375EMN
48x3375	90°	80	4000	140	24870	23129	N	6530905N3375E0N	6530905N3375DDN	6530905N3375EMN
48x575	EW	80	3000	16	2790	2595	N	6530EW3W0575E0N	6530EW3W0575DDN	-
48x575	EW	80	4000	16	2950	2744	N	6530EW3N0575E0N	6530EW3N0575DDN	-
48x1135	EW	80	3000	31	5580	5189	N	6530EW3W1135E0N	6530EW3W1135DDN	6530EW3W1135EMN
48x1135	EW	80	4000	31	5900	5487	N	6530EW3N1135E0N	6530EW3N1135DDN	6530EW3N1135EMN
48x1695	EW	80	3000	47	8370	7784	N	6530EW3W1695E0N	6530EW3W1695DDN	6530EW3W1695EMN
48x1695	EW	80	4000	47	8850	8231	N	6530EW3N1695E0N	6530EW3N1695DDN	6530EW3N1695EMN
48x2255	EW	80	3000	63	11160	10379	N	6530EW3W2255E0N	6530EW3W2255DDN	6530EW3W2255EMN
48x2255	EW	80	4000	63	11800	10974	N	6530EW3N2255E0N	6530EW3N2255DDN	6530EW3N2255EMN
48x2815	EW	80	3000	79	13950	12974	N	6530EW3W2815E0N	6530EW3W2815DDN	6530EW3W2815EMN
48x2815	EW	80	4000	79	14750	13718	N	6530EW3N2815E0N	6530EW3N2815DDN	6530EW3N2815EMN
48x3375	EW	80	3000	94	16740	15568	N	6530EW5W3375E0N	6530EW5W3375DDN	6530EW5W3375EMN
48x3375	EW	80	4000	94	17700	16461	N	6530EW5N3375E0N	6530EW5N3375DDN	6530EW5N3375EMN
48x575	EW	80	3000	23	3920	3646	N	6530EW5W0575E0N	6530EW5W0575DDN	-
48x575	EW	80	4000	23	4145	3855	N	6530EW5N0575E0N	6530EW5N0575DDN	-
48x1135	EW	80	3000	47	7840	7291	N	6530EW5W1135E0N	6530EW5W1135DDN	6530EW5W1135EMN
48x1135	EW	80	4000	47	8290	7710	N	6530EW5N1135E0N	6530EW5N1135DDN	6530EW5N1135EMN
48x1695	EW	80	3000	70	11760	10937	N	6530EW5W1695E0N	6530EW5W1695DDN	6530EW5W1695EMN
48x1695	EW	80	4000	70	12435	11565	N	6530EW5N1695E0N	6530EW5N1695DDN	6530EW5N1695EMN
48x2255	EW	80	3000	93	15680	14582	N	6530EW5W2255E0N	6530EW5W2255DDN	6530EW5W2255EMN
48x2255	EW	80	4000	93	16580	15419	N	6530EW5N2255E0N	6530EW5N2255DDN	6530EW5N2255EMN
48x2815	EW	80	3000	117	19600	18228	N	6530EW5W2815E0N	6530EW5W2815DDN	6530EW5W2815EMN
48x2815	EW	80	4000	117	20725	19274	N	6530EW5N2815E0N	6530EW5N2815DDN	6530EW5N2815EMN
48x3375	EW	80	3000	140	23520	21874	N	6530EW5W3375E0N	6530EW5W3375DDN	6530EW5W3375EMN
48x3375	EW	80	4000	140	24870	23129	N	6530EW5N3375E0N	6530EW5N3375DDN	6530EW5N3375EMN
48x575	RA	80	3000	16	2790	2595	N	6530RA3W0575E0N	6530RA3W0575DDN	-
48x575	RA	80	4000	16	2950	2744	N	6530RA3N0575E0N	6530RA3N0575DDN	-
48x1135	RA	80	3000	31	5580	5189	N	6530RA3W1135E0N	6530RA3W1135DDN	6530RA3W1135EMN
48x1135	RA	80	4000	31	5900	5487	N	6530RA3N1135E0N	6530RA3N1135DDN	6530RA3N1135EMN
48x1695	RA	80	3000	47	8370	7784	N	6530RA3W1695E0N	6530RA3W1695DDN	6530RA3W1695EMN
48x1695	RA	80	4000	47	8850	8231	N	6530RA3N1695E0N	6530RA3N1695DDN	6530RA3N1695EMN
48x2255	RA	80	3000	63	11160	10379	N	6530RA3W2255E0N	6530RA3W2255DDN	6530RA3W2255EMN
48x2255	RA	80	4000	63	11800	10974	N	6530RA3N2255E0N	6530RA3N2255DDN	6530RA3N2255EMN
48x2815	RA	80	3000	79	13950	12974	N	6530RA3W2815E0N	6530RA3W2815DDN	6530RA3W2815EMN
48x2815	RA	80	4000	79	14750	13718	N	6530RA3N2815E0N	6530RA3N2815DDN	6530RA3N2815EMN
48x3375	RA	80	3000	94	16740	15568	N	6530RA5W3375E0N	6530RA5W3375DDN	6530RA5W3375EMN
48x3375	RA	80	4000	94	17700	16461	N	6530RA5N3375E0N	6530RA5N3375DDN	6530RA5N3375EMN
48x575	RA	80	3000	23	3920	3646	N	6530RA5W0575E0N	6530RA5W0575DDN	-
48x575	RA	80	4000	23	4145	3855	N	6530RA5N0575E0N	6530RA5N0575DDN	-
48x1135	RA	80	3000	47	7840	7291	N	6530RA5W1135E0N	6530RA5W1135DDN	6530RA5W1135EMN
48x1135	RA	80	4000	47	8290	7710	N	6530RA5N1135E0N	6530RA5N1135DDN	6530RA5N1135EMN
48x1695	RA	80	3000	70	11760	10937	N	6530RA5W1695E0N	6530RA5W1695DDN	6530RA5W1695EMN
48x1695	RA	80	4000	70	12435	11565	N	6530RA5N1695E0N	6530RA5N1695DDN	6530RA5N1695EMN
48x2255	RA	80	3000	93	15680	14582	N	6530RA5W2255E0N	6530RA5W2255DDN	6530RA5W2255EMN
48x2255	RA	80	4000	93	16580	15419	N	6530RA5N2255E0N	6530RA5N2255DDN	6530RA5N2255EMN
48x2815	RA	80	3000	117	19600	18228	N	6530RA5W2815E0N	6530RA5W2815DDN	6530RA5W2815EMN
48x2815	RA	80	4000	117	20725	19274	N	6530RA5N2815E0N	6530RA5N2815DDN	6530RA5N2815EMN
48x3375	RA	80	3000	140	23520	21874	N	6530RA5W3375E0N	6530RA5W3375DDN	6530RA5W3375EMN
48x3375	RA	80	4000	140	24870	23129	N	6530RA5N3375E0N	6530RA5N3375DDN	6530RA5N3375EMN
48x575	RS	80	3000	16	2790	2595	N	6530RS3W0575E0N	6530RS3W0575DDN	-
48x575	RS	80	4000	16	2950	2744	N	6530RS3N0575E0N	6530RS3N0575DDN	-
48x1135	RS	80	3000	31	5580	5189	N	6530RS3W1135E0N	6530RS3W1135DDN	6530RS3W1135EMN
48x1135	RS	80	4000	31	5900	5487	N	6530RS3N1135E0N	6530RS3N1135DDN	6530RS3N1135EMN
48x1695	RS	80	3000	47	8370	7784	N	6530RS3W1695E0N	6530RS3W1695DDN	6530RS3W1695EMN
48x1695	RS	80	4000	47	8850	8231	N	6530RS3N1695E0N	6530RS3N1695DDN	6530RS3N1695EMN
48x2255	RS	80	3000	63	11160	10379	N	6530RS3W2255E0N	6530RS3W2255DDN	6530RS3W2255EMN
48x2255	RS	80	4000	63	11800	10974	N	6530RS3N2255E0N	6530RS3N2255DDN	6530RS3N2255EMN
48x2815	RS	80	3000	79	13950	12974	N	6530RS3W2815E0N	6530RS3W2815DDN	6530RS3W2815EMN
48x2815	RS	80	4000	79	14750	13718	N	6530RS3N2815E0N	6530RS3N2815DDN	6530RS3N2815EMN
48x3375	RS	80	3000	94	16740	15568	N	6530RS5W3375E0N	6530RS5W3375DDN	6530RS5W3375EMN
48x3375	RS	80	4000	94	17700	16461	N	6530RS5N3375E0N	6530RS5N3375DDN	6530RS5N3375EMN
48x575	RS	80	3000	23	3920	3646	N	6530RS5W0575E0N	6530RS5W0575DDN	-
48x575	RS	80	4000	23	4145	3855	N	6530RS5N0575E0N	6530RS5N0575DDN	-
48x1135	RS	80	3000	47	7840	7291	N	6530RS5W1135E0N	6530RS5W1135DDN	6530RS5W1135EMN
48x1135	RS	80	4000	47	8290	7710	N	6530RS5N1135E0N	6530RS5N1135DDN	6530RS5N1135EMN
48x1695	RS	80	3000	70	11760	10937	N	6530RS5W1695E0N	6530RS5W1695DDN	6530RS5W1695EMN
48x1695	RS	80	4000	70	12435	11565	N	6530RS5N1695E0N	6530RS5N1695DDN	6530RS5N1695EMN
48x2255	RS	80	3000	93	15680	14582	N	6530RS5W2255E0N	6530RS5W2255DDN	6530RS5W2255EMN
48x2255	RS	80	4000	93	16580	15419	N	6530RS5N2255E0N	6530RS5N2255DDN	6530RS5N2255EMN
48x2815	RS	80	3000	117	19600	18228	N	6530RS5W2815E0N	6530RS5W2815DDN	6530RS5W2815EMN
48x2815	RS	80	4000	117	20725	19274	N	6530RS5N2815E0N	6530RS5N2815DDN	6530RS5N2815EMN
48x3375	RS	80	3000	140	23520	21874	N	6530RS5W3375E0N	6530RS5W3375DDN	6530RS5W3375EMN
48x3375	RS	80	4000	140	24870	23129	N	6530RS5N3375E0N	6530RS5N3375DDN	6530RS5N3375EMN
48x575	60°	90	3000	16	2375	2209	B	653090603W0575E0B	653090603W0575DDB	-
48x575	60°	90	4000	16	2485	2311	B	653090603N0575E0B	653090603N0575DDB	-
48x1135	60°	90	3000	31	4750	4418	B	653090603W1135E0B	653090603W1135DDB	653090603W1135EMB
48x1135	60°	90	4000	31	4970	4622	B	653090603N1135E0B	653090603N1135DDB	653090603N1135EMB
48x1695	60°	90	3000	47	7125	6626	B	653090603W1695E0B	653090603W1695DDB	653090603W1695EMB
48x1695	60°	90	4000	47	7455	6933	B	653090603N1695E0B	653090603N1695DDB	653090603N1695EMB
48x2255	60°	90	3000	63	9500	8835	B	653090603W2255E0B	653090603W2255DDB	653090603W2255EMB
48x2255	60°	90	4000	63	9940	9244	B	653090603N2255E0B	653090603N2255DDB	653090603N2255EMB
48x2815	60°	90	3000	79	11875	11044	B	653090603W2815E0B	653090603W2815DDB	653090603W2815EMB
48x2815	60°	90	4000	79	12425	11555	B	653090603N2815E0B	653090603N2815DDB	653090603N2815EMB
48x3375	60°	90	3000	94	14250	13253	B	653090603W3375E0B	653090603W3375DDB	653090603W3375EMB
48x3375	60°	90	4000	94	14910	13866	B	653090603N3375E0B	653090603N3375DDB	653090603N3375EMB
48x575	60°	90	3000	23	3335	3102	B	653090605W0575E0B	653090605W0575DDB	-
48x575	60°	90	4000	23	3495	3250	B	653090605N0575E0B	653090605N0575DDB	-
48x1135	60°	90	3000	47	6670	6203	B	653090605W1135E0B	653090605W1135DDB	653090605W1135EMB
48x1135	60°	90	4000	47	6990	6501	B	653090605N1135E0B	653090605N1135DDB	653090605N1135EMB
48x1695	60°	90	3000	70	10005	9305	B	653090605W1695E0B	653090605W1695DDB	653090605W1695EMB
48x1695	60°	90	4000	70	10485	9751	B	653090605N1695E0B	653090605N1695DDB	653090605N1695EMB
48x2255	60°	90	3000	93	13340	12406	B	653090605W2255E0B	653090605W2255DDB	653090605W2255EMB
48x2255	60°	90	4000	93	13980	13001	B	653090605N2255E0B	653090605N2255DDB	653090605N2255EMB
48x2815	60°	90	3000	117	16675	15508	B	653090605W2815E0B	653090605W2815DDB	653090605W2815EMB
48x2815	60°	90	4000	117	17475	16252	B	653090605N2815E0B	653090605N2815DDB	653090605N2815EMB
48x3375	60°	90	3000	140	20010	18609	B	653090605W3375E0B	653090605W3375DDB	653090605W3375EMB
48x3375	60°	90	4000	140	20970	19502	B	653090605N3375E0B	653090605N3375DDB	653090605N3375EMB
48x575	90°	90	3000	16	2375	2209	B	653090903W0575E0B	653090903W0575DDB	-
48x575	90°	90	4000	16	2485	2311	B	653090903N0575E0B	653090903N0575DDB	-
48x1135	90°	90	3000	31	4750	4418	B	653090903W1135E0B	653090903W1135DDB	653090903W1135EMB
48x1135	90°	90	4000	31	4970	4622	B	653090903N1135E0B	653090903N1135DDB	653090903N1135EMB
48x1695	90°	90	3000	47	7125	6626	B	653090903W1695E0B	653090903W1695DDB	653090903W1695EMB
48x1695	90°	90	4000	47	7455	6933	B	653090903N1695E0B	653090903N1695DDB	653090903N1695EMB
48x2255	90°	90	3000	63	9500	8835	B	653090903W2255E0B	653090903W2255DDB	653090903W2255EMB
48x2255	90°	90	4000	63	9940	9244	B	653090903N2255E0B	653090903N2255DDB	653090903N2255EMB
48x2815	90°	90	3000	79	11875	11044	B	653090903W2815E0B	653090903W2815DDB	653090903W2815EMB
48x2815	90°	90	4000	79	12425	11555	B	653090903N2815E0B	653090903N2815DDB	653090903N2815EMB
48x3375	90°	90	3000	94	14250	13253	B	653090905W3375E0B	653090905W3375DDB	653090905W3375EMB
48x3375	90°	90	4000	94	14910	13866	B	653090905N3375E0B	653090905N3375DDB	653090905N3375EMB
48x575	90°	90	3000	23	3335	3102	B	653090905W0575E0B	653090905W0575DDB	-
48x575	90°	90	4000	23	3495	3250	B	653090905N0575E0B	653090905N0575DDB	-
48x1135	90°	90	3000	47	6670	6203	B	653090905W1135E0B	653090905W1135DDB	653090905W1135EMB
48x1135	90°	90	4000	47	6990	6501	B	653090905N1135E0B	653090905N1135DDB	653090905N1135EMB
48x1695	90°	90	3000	70	10005	9305	B	653090905W1695E0B	653090905W1695DDB	653090905W1695EMB
48x1695	90°	90	4000	70	10485	9751	B	653090905N1695E0B	653090905N1695DDB	653090905N1695EMB
48x2255	90°	90	3000	93	13340	12406	B	653090905W2255E0B	653090905W2255DDB	653090905W2255EMB
48x2255	90°	90	4000	93	13980	13001	B	653090905N2255E0B	653090905N2255DDB	653090905N2255EMB
48x2815	90°	90	3000	117	16675	15508	B	653090905W2815E0B	653090905W2815DDB	653090905W2815EMB
48x2815	90°	90	4000	117	17475	16252	B	653090905N2815E0B	653090905N2815DDB	653090905N2815EMB
48x3375	90°	90	3000	140	20010	18609	B	653090905W3375E0B	653090905W3375DDB	653090905W3375EMB
48x3375	90°	90	4000	140	20970	19502	B	653090905N3375E0B	653090905N3375DDB	653090905N3375EMB
48x575	EW	90	3000	16	2375	2209	B	653090EW3W0575E0B	653090EW3W0575DDB	-
48x575	EW	90	4000	16	2485	2311	B	653090EW3N0575E0B	653090EW3N0575DDB	-
48x1135	EW	90	3000	31	4750	4418	B	653090EW3W1135E0B	653090EW3W1135DDB	653090EW3W1135EMB
48x1135	EW	90	4000	31	4970	4622	B	653090EW3N1135E0B	653090EW3N1135DDB	653090EW3N1135EMB
48x1695	EW	90	3000	47	7125	6626	B	653090EW3W1695E0B	653090EW3W1695DDB	653090EW3W1695EMB
48x1695	EW	90	4000	47	7455	6933	B	653090EW3N1695E0B	653090EW3N1695DDB	653090EW3N1695EMB
48x2255	EW	90	3000	63	9500	8835	B	653090EW3W2255E0B	653090EW3W2255DDB	653090EW3W2255EMB
48x2255	EW	90	4000	63	9940	9244	B	653090EW3N2255E0B	653090EW3N2255DDB	653090EW3N2255EMB
48x2815	EW	90	3000	79	11875	11044	B	653090EW3W2815E0B	653090EW3W2815DDB	653090EW3W2815EMB
48x2815	EW	90	4000	79	12425	11555	B	653090EW3N2815E0B	653090EW3N2815DDB	653090EW3N2815EMB
48x3375	EW	90	3000	94	14250	13253	B	653090EW5W3375E0B	653090EW5W3375DDB	653090EW5W3375EMB
48x3375	EW	90	4000	94	14910	13866	B	653090EW5N3375E0B	653090EW5N3375DDB	653090EW5N3375EMB
48x575	EW	90	3000	23	3335	3102	B	653090EW5W0575E0B	653090EW5W0575DDB	-
48x575	EW	90	4000	23	3495	3250	B	653090EW5N0575E0B	653090EW5N0575DDB	-
48x1135	EW	90	3000	47	6670	6203	B	653090EW5W1135E0B	653090EW5W1135DDB	653090EW5W1135EMB
48x1135	EW	90	4000	47	6990	6501	B	653090EW5N1135E0B	653090EW5N1135DDB	653090EW5N1135EMB
48x1695	EW	90	3000	70	10005	9305	B	653090EW5W1695E0B	653090EW5W1695DDB	653090EW5W1695EMB
48x1695	EW	90	4000	70	10485	9751	B	653090EW5N1695E0B	653090EW5N1695DDB	653090EW5N1695EMB
48x2255	EW	90	3000	93	13340	12406	B	653090EW5W2255E0B	653090EW5W2255DDB	653090EW5W2255EMB
48x2255	EW	90	4000	93	13980	13001	B	653090EW5N2255E0B	653090EW5N2255DDB	653090EW5N2255EMB
48x2815	EW	90	3000	117	16675	15508	B	653090EW5W2815E0B	653090EW5W2815DDB	653090EW5W2815EMB
48x2815	EW	90	4000	117	17475	16252	B	653090EW5N2815E0B	653090EW5N2815DDB	653090EW5N2815EMB
48x3375	EW	90	3000	140	20010	18609	B	653090EW5W3375E0B	653090EW5W3375DDB	653090EW5W3375EMB
48x3375	EW	90	4000	140	20970	19502	B	653090EW5N3375E0B	653090EW5N3375DDB	653090EW5N3375EMB
48x575	RA	90	3000	16	2375	2209	B	653090RA3W0575E0B	653090RA3W0575DDB	-
48x575	RA	90	4000	16	2485	2311	B	653090RA3N0575E0B	653090RA3N0575DDB	-
48x1135	RA	90	3000	31	4750	4418	B	653090RA3W1135E0B	653090RA3W1135DDB	653090RA3W1135EMB
48x1135	RA	90	4000	31	4970	4622	B	653090RA3N1135E0B	653090RA3N1135DDB	653090RA3N1135EMB
48x1695	RA	90	3000	47	7125	6626	B	653090RA3W1695E0B	653090RA3W1695DDB	653090RA3W1695EMB
48x1695	RA	90	4000	47	7455	6933	B	653090RA3N1695E0B	653090RA3N1695DDB	653090RA3N1695EMB
48x2255	RA	90	3000	63	9500	8835	B	653090RA3W2255E0B	653090RA3W2255DDB	653090RA3W2255EMB
48x2255	RA	90	4000	63	9940	9244	B	653090RA3N2255E0B	653090RA3N2255DDB	653090RA3N2255EMB
48x2815	RA	90	3000	79	11875	11044	B	653090RA3W2815E0B	653090RA3W2815DDB	653090RA3W2815EMB
48x2815	RA	90	4000	79	12425	11555	B	653090RA3N2815E0B	653090RA3N2815DDB	653090RA3N2815EMB
48x3375	RA	90	3000	94	14250	13253	B	653090RA5W3375E0B	653090RA5W3375DDB	653090RA5W3375EMB
48x3375	RA	90	4000	94	14910	13866	B	653090RA5N3375E0B	653090RA5N3375DDB	653090RA5N3375EMB
48x575	RA	90	3000	23	3335	3102	B	653090RA5W0575E0B	653090RA5W0575DDB	-
48x575	RA	90	4000	23	3495	3250	B	653090RA5N0575E0B	653090RA5N0575DDB	-
48x1135	RA	90	3000	47	6670	6203	B	653090RA5W1135E0B	653090RA5W1135DDB	653090RA5W1135EMB
48x1135	RA	90	4000	47	6990	6501	B	653090RA5N1135E0B	653090RA5N1135DDB	653090RA5N1135EMB
48x1695	RA	90	3000	70	10005	9305	B	653090RA5W1695E0B	653090RA5W1695DDB	653090RA5W1695EMB
48x1695	RA	90	4000	70	10485	9751	B	653090RA5N1695E0B	653090RA5N1695DDB	653090RA5N1695EMB
48x2255	RA	90	3000	93	13340	12406	B	653090RA5W2255E0B	653090RA5W2255DDB	653090RA5W2255EMB
48x2255	RA	90	4000	93	13980	13001	B	653090RA5N2255E0B	653090RA5N2255DDB	653090RA5N2255EMB
48x2815	RA	90	3000	117	16675	15508	B	653090RA5W2815E0B	653090RA5W2815DDB	653090RA5W2815EMB
48x2815	RA	90	4000	117	17475	16252	B	653090RA5N2815E0B	653090RA5N2815DDB	653090RA5N2815EMB
48x3375	RA	90	3000	140	20010	18609	B	653090RA5W3375E0B	653090RA5W3375DDB	653090RA5W3375EMB
48x3375	RA	90	4000	140	20970	19502	B	653090RA5N3375E0B	653090RA5N3375DDB	653090RA5N3375EMB
48x575	RS	90	3000	16	2375	2209	B	653090RS3W0575E0B	653090RS3W0575DDB	-
48x575	RS	90	4000	16	2485	2311	B	653090RS3N0575E0B	653090RS3N0575DDB	-
48x1135	RS	90	3000	31	4750	4418	B	653090RS3W1135E0B	653090RS3W1135DDB	653090RS3W1135EMB
48x1135	RS	90	4000	31	4970	4622	B	653090RS3N1135E0B	653090RS3N1135DDB	653090RS3N1135EMB
48x1695	RS	90	3000	47	7125	6626	B	653090RS3W1695E0B	653090RS3W1695DDB	653090RS3W1695EMB
48x1695	RS	90	4000	47	7455	6933	B	653090RS3N1695E0B	653090RS3N1695DDB	653090RS3N1695EMB
48x2255	RS	90	3000	63	9500	8835	B	653090RS3W2255E0B	653090RS3W2255DDB	653090RS3W2255EMB
48x2255	RS	90	4000	63	9940	9244	B	653090RS3N2255E0B	653090RS3N2255DDB	653090RS3N2255EMB
48x2815	RS	90	3000	79	11875	11044	B	653090RS3W2815E0B	653090RS3W2815DDB	653090RS3W2815EMB
48x2815	RS	90	4000	79	12425	11555	B	653090RS3N2815E0B	653090RS3N2815DDB	653090RS3N2815EMB
48x3375	RS	90	3000	94	14250	13253	B	653090RS5W3375E0B	653090RS5W3375DDB	653090RS5W3375EMB
48x3375	RS	90	4000	94	14910	13866	B	653090RS5N3375E0B	653090RS5N3375DDB	653090RS5N3375EMB
48x575	RS	90	3000	23	3335	3102	B	653090RS5W0575E0B	653090RS5W0575DDB	-
48x575	RS	90	4000	23	3495	3250	B	653090RS5N0575E0B	653090RS5N0575DDB	-
48x1135	RS	90	3000	47	6670	6203	B	653090RS5W1135E0B	653090RS5W1135DDB	653090RS5W1135EMB
48x1135	RS	90	4000	47	6990	6501	B	653090RS5N1135E0B	653090RS5N1135DDB	653090RS5N1135EMB
48x1695	RS	90	3000	70	10005	9305	B	653090RS5W1695E0B	653090RS5W1695DDB	653090RS5W1695EMB
48x1695	RS	90	4000	70	10485	9751	B	653090RS5N1695E0B	653090RS5N1695DDB	653090RS5N1695EMB
48x2255	RS	90	3000	93	13340	12406	B	653090RS5W2255E0B	653090RS5W2255DDB	653090RS5W2255EMB
48x2255	RS	90	4000	93	13980	13001	B	653090RS5N2255E0B	653090RS5N2255DDB	653090RS5N2255EMB
48x2815	RS	90	3000	117	16675	15508	B	653090RS5W2815E0B	653090RS5W2815DDB	653090RS5W2815EMB
48x2815	RS	90	4000	117	17475	16252	B	653090RS5N2815E0B	653090RS5N2815DDB	653090RS5N2815EMB
48x3375	RS	90	3000	140	20010	18609	B	653090RS5W3375E0B	653090RS5W3375DDB	653090RS5W3375EMB
48x3375	RS	90	4000	140	20970	19502	B	653090RS5N3375E0B	653090RS5N3375DDB	653090RS5N3375EMB
48x575	60°	90	3000	16	2375	2209	N	653090603W0575E0N	653090603W0575DDN	-
48x575	60°	90	4000	16	2485	2311	N	653090603N0575E0N	653090603N0575DDN	-
48x1135	60°	90	3000	31	4750	4418	N	653090603W1135E0N	653090603W1135DDN	653090603W1135EMN
48x1135	60°	90	4000	31	4970	4622	N	653090603N1135E0N	653090603N1135DDN	653090603N1135EMN
48x1695	60°	90	3000	47	7125	6626	N	653090603W1695E0N	653090603W1695DDN	653090603W1695EMN
48x1695	60°	90	4000	47	7455	6933	N	653090603N1695E0N	653090603N1695DDN	653090603N1695EMN
48x2255	60°	90	3000	63	9500	8835	N	653090603W2255E0N	653090603W2255DDN	653090603W2255EMN
48x2255	60°	90	4000	63	9940	9244	N	653090603N2255E0N	653090603N2255DDN	653090603N2255EMN
48x2815	60°	90	3000	79	11875	11044	N	653090603W2815E0N	653090603W2815DDN	653090603W2815EMN
48x2815	60°	90	4000	79	12425	11555	N	653090603N2815E0N	653090603N2815DDN	653090603N2815EMN
48x3375	60°	90	3000	94	14250	13253	N	653090603W3375E0N	653090603W3375DDN	653090603W3375EMN
48x3375	60°	90	4000	94	14910	13866	N	653090603N3375E0N	653090603N3375DDN	653090603N3375EMN
48x575	60°	90	3000	23	3335	3102	N	653090605W0575E0N	653090605W0575DDN	-
48x575	60°	90	4000	23	3495	3250	N	653090605N0575E0N	653090605N0575DDN	-
48x1135	60°	90	3000	47	6670	6203	N	653090605W1135E0N	653090605W1135DDN	653090605W1135EMN
48x1135	60°	90	4000	47	6990	6501	N	653090605N1135E0N	653090605N1135DDN	653090605N1135EMN
48x1695	60°	90	3000	70	10005	9305	N	653090605W1695E0N	653090605W1695DDN	653090605W1695EMN
48x1695	60°	90	4000	70	10485	9751	N	653090605N1695E0N	653090605N1695DDN	653090605N1695EMN
48x2255	60°	90	3000	93	13340	12406	N	653090605W2255E0N	653090605W2255DDN	653090605W2255EMN
48x2255	60°	90	4000	93	13980	13001	N	653090605N2255E0N	653090605N2255DDN	653090605N2255EMN
48x2815	60°	90	3000	117	16675	15508	N	653090605W2815E0N	653090605W2815DDN	653090605W2815EMN
48x2815	60°	90	4000	117	17475	16252	N	653090605N2815E0N	653090605N2815DDN	653090605N2815EMN
48x3375	60°	90	3000	140	20010	18609	N	653090605W3375E0N	653090605W3375DDN	653090605W3375EMN
48x3375	60°	90	4000	140	20970	19502	N	653090605N3375E0N	653090605N3375DDN	653090605N3375EMN
48x575	90°	90	3000	16	2375	2209	N	653090903W0575E0N	653090903W0575DDN	-
48x575	90°	90	4000	16	2485	2311	N	653090903N0575E0N	653090903N0575DDN	-
48x1135	90°	90	3000	31	4750	4418	N	653090903W1135E0N	653090903W1135DDN	653090903W1135EMN
48x1135	90°	90	4000	31	4970	4622	N	653090903N1135E0N	653090903N1135DDN	653090903N1135EMN
48x1695	90°	90	3000	47	7125	6626	N	653090903W1695E0N	653090903W1695DDN	653090903W1695EMN
48x1695	90°	90	4000	47	7455	6933	N	653090903N1695E0N	653090903N1695DDN	653090903N1695EMN
48x2255	90°	90	3000	63	9500	8835	N	653090903W2255E0N	653090903W2255DDN	653090903W2255EMN
48x2255	90°	90	4000	63	9940	9244	N	653090903N2255E0N	653090903N2255DDN	653090903N2255EMN
48x2815	90°	90	3000	79	11875	11044	N	653090903W2815E0N	653090903W2815DDN	653090903W2815EMN
48x2815	90°	90	4000	79	12425	11555	N	653090903N2815E0N	653090903N2815DDN	653090903N2815EMN
48x3375	90°	90	3000	94	14250	13253	N	653090905W3375E0N	653090905W3375DDN	653090905W3375EMN
48x3375	90°	90	4000	94	14910	13866	N	653090905N3375E0N	653090905N3375DDN	653090905N3375EMN
48x575	90°	90	3000	23	3335	3102	N	653090905W0575E0N	653090905W0575DDN	-
48x575	90°	90	4000	23	3495	3250	N	653090905N0575E0N	653090905N0575DDN	-
48x1135	90°	90	3000	47	6670	6203	N	653090905W1135E0N	653090905W1135DDN	653090905W1135EMN
48x1135	90°	90	4000	47	6990	6501	N	653090905N1135E0N	653090905N1135DDN	653090905N1135EMN
48x1695	90°	90	3000	70	10005	9305	N	653090905W1695E0N	653090905W1695DDN	653090905W1695EMN
48x1695	90°	90	4000	70	10485	9751	N	653090905N1695E0N	653090905N1695DDN	653090905N1695EMN
48x2255	90°	90	3000	93	13340	12406	N	653090905W2255E0N	653090905W2255DDN	653090905W2255EMN
48x2255	90°	90	4000	93	13980	13001	N	653090905N2255E0N	653090905N2255DDN	653090905N2255EMN
48x2815	90°	90	3000	117	16675	15508	N	653090905W2815E0N	653090905W2815DDN	653090905W2815EMN
48x2815	90°	90	4000	117	17475	16252	N	653090905N2815E0N	653090905N2815DDN	653090905N2815EMN
48x3375	90°	90	3000	140	20010	18609	N	653090905W3375E0N	653090905W3375DDN	653090905W3375EMN
48x3375	90°	90	4000	140	20970	19502	N	653090905N3375E0N	653090905N3375DDN	653090905N3375EMN
48x575	EW	90	3000	16	2375	2209	N	653090EW3W0575E0N	653090EW3W0575DDN	-
48x575	EW	90	4000	16	2485	2311	N	653090EW3N0575E0N	653090EW3N0575DDN	-
48x1135	EW	90	3000	31	4750	4418	N	653090EW3W1135E0N	653090EW3W1135DDN	653090EW3W1135EMN
48x1135	EW	90	4000	31	4970	4622	N	653090EW3N1135E0N	653090EW3N1135DDN	653090EW3N1135EMN
48x1695	EW	90	3000	47	7125	6626	N	653090EW3W1695E0N	653090EW3W1695DDN	653090EW3W1695EMN
48x1695	EW	90	4000	47	7455	6933	N	653090EW3N1695E0N	653090EW3N1695DDN	653090EW3N1695EMN
48x2255	EW	90	3000	63	9500	8835	N	653090EW3W2255E0N	653090EW3W2255DDN	653090EW3W2255EMN
48x2255	EW	90	4000	63	9940	9244	N	653090EW3N2255E0N	653090EW3N2255DDN	653090EW3N2255EMN
48x2815	EW	90	3000	79	11875	11044	N	653090EW3W2815E0N	653090EW3W2815DDN	653090EW3W2815EMN
48x2815	EW	90	4000	79	12425	11555	N	653090EW3N2815E0N	653090EW3N2815DDN	653090EW3N2815EMN
48x3375	EW	90	3000	94	14250	13253	N	653090EW5W3375E0N	653090EW5W3375DDN	653090EW5W3375EMN
48x3375	EW	90	4000	94	14910	13866	N	653090EW5N3375E0N	653090EW5N3375DDN	653090EW5N3375EMN
48x575	EW	90	3000	23	3335	3102	N	653090EW5W0575E0N	653090EW5W0575DDN	-
48x575	EW	90	4000	23	3495	3250	N	653090EW5N0575E0N	653090EW5N0575DDN	-
48x1135	EW	90	3000	47	6670	6203	N	653090EW5W1135E0N	653090EW5W1135DDN	653090EW5W1135EMN
48x1135	EW	90	4000	47	6990	6501	N	653090EW5N1135E0N	653090EW5N1135DDN	653090EW5N1135EMN
48x1695	EW	90	3000	70	10005	9305	N	653090EW5W1695E0N	653090EW5W1695DDN	653090EW5W1695EMN
48x1695	EW	90	4000	70	10485	9751	N	653090EW5N1695E0N	653090EW5N1695DDN	653090EW5N1695EMN
48x2255	EW	90	3000	93	13340	12406	N	653090EW5W2255E0N	653090EW5W2255DDN	653090EW5W2255EMN
48x2255	EW	90	4000	93	13980	13001	N	653090EW5N2255E0N	653090EW5N2255DDN	653090EW5N2255EMN
48x2815	EW	90	3000	117	16675	15508	N	653090EW5W2815E0N	653090EW5W2815DDN	653090EW5W2815EMN
48x2815	EW	90	4000	117	17475	16252	N	653090EW5N2815E0N	653090EW5N2815DDN	653090EW5N2815EMN
48x3375	EW	90	3000	140	20010	18609	N	653090EW5W3375E0N	653090EW5W3375DDN	653090EW5W3375EMN
48x3375	EW	90	4000	140	20970	19502	N	653090EW5N3375E0N	653090EW5N3375DDN	653090EW5N3375EMN
48x575	RA	90	3000	16	2375	2209	N	653090RA3W0575E0N	653090RA3W0575DDN	-
48x575	RA	90	4000	16	2485	2311	N	653090RA3N0575E0N	653090RA3N0575DDN	-
48x1135	RA	90	3000	31	4750	4418	N	653090RA3W1135E0N	653090RA3W1135DDN	653090RA3W1135EMN
48x1135	RA	90	4000	31	4970	4622	N	653090RA3N1135E0N	653090RA3N1135DDN	653090RA3N1135EMN
48x1695	RA	90	3000	47	7125	6626	N	653090RA3W1695E0N	653090RA3W1695DDN	653090RA3W1695EMN
48x1695	RA	90	4000	47	7455	6933	N	653090RA3N1695E0N	653090RA3N1695DDN	653090RA3N1695EMN
48x2255	RA	90	3000	63	9500	8835	N	653090RA3W2255E0N	653090RA3W2255DDN	653090RA3W2255EMN
48x2255	RA	90	4000	63	9940	9244	N	653090RA3N2255E0N	653090RA3N2255DDN	653090RA3N2255EMN
48x2815	RA	90	3000	79	11875	11044	N	653090RA3W2815E0N	653090RA3W2815DDN	653090RA3W2815EMN
48x2815	RA	90	4000	79	12425	11555	N	653090RA3N2815E0N	653090RA3N2815DDN	653090RA3N2815EMN
48x3375	RA	90	3000	94	14250	13253	N	653090RA5W3375E0N	653090RA5W3375DDN	653090RA5W3375EMN
48x3375	RA	90	4000	94	14910	13866	N	653090RA5N3375E0N	653090RA5N3375DDN	653090RA5N3375EMN
48x575	RA	90	3000	23	3335	3102	N	653090RA5W0575E0N	653090RA5W0575DDN	-
48x575	RA	90	4000	23	3495	3250	N	653090RA5N0575E0N	653090RA5N0575DDN	-
48x1135	RA	90	3000	47	6670	6203	N	653090RA5W1135E0N	653090RA5W1135DDN	653090RA5W1135EMN
48x1135	RA	90	4000	47	6990	6501	N	653090RA5N1135E0N	653090RA5N1135DDN	653090RA5N1135EMN
48x1695	RA	90	3000	70	10005	9305	N	653090RA5W1695E0N	653090RA5W1695DDN	653090RA5W1695EMN
48x1695	RA	90	4000	70	10485	9751	N	653090RA5N1695E0N	653090RA5N1695DDN	653090RA5N1695EMN
48x2255	RA	90	3000	93	13340	12406	N	653090RA5W2255E0N	653090RA5W2255DDN	653090RA5W2255EMN
48x2255	RA	90	4000	93	13980	13001	N	653090RA5N2255E0N	653090RA5N2255DDN	653090RA5N2255EMN
48x2815	RA	90	3000	117	16675	15508	N	653090RA5W2815E0N	653090RA5W2815DDN	653090RA5W2815EMN
48x2815	RA	90	4000	117	17475	16252	N	653090RA5N2815E0N	653090RA5N2815DDN	653090RA5N2815EMN
48x3375	RA	90	3000	140	20010	18609	N	653090RA5W3375E0N	653090RA5W3375DDN	653090RA5W3375EMN
48x3375	RA	90	4000	140	20970	19502	N	653090RA5N3375E0N	653090RA5N3375DDN	653090RA5N3375EMN
48x575	RS	90	3000	16	2375	2209	N	653090RS3W0575E0N	653090RS3W0575DDN	-
48x575	RS	90	4000	16	2485	2311	N	653090RS3N0575E0N	653090RS3N0575DDN	-
48x1135	RS	90	3000	31	4750	4418	N	653090RS3W1135E0N	653090RS3W1135DDN	653090RS3W1135EMN
48x1135	RS	90	4000	31	4970	4622	N	653090RS3N1135E0N	653090RS3N1135DDN	653090RS3N1135EMN
48x1695	RS	90	3000	47	7125	6626	N	653090RS3W1695E0N	653090RS3W1695DDN	653090RS3W1695EMN
48x1695	RS	90	4000	47	7455	6933	N	653090RS3N1695E0N	653090RS3N1695DDN	653090RS3N1695EMN
48x2255	RS	90	3000	63	9500	8835	N	653090RS3W2255E0N	653090RS3W2255DDN	653090RS3W2255EMN
48x2255	RS	90	4000	63	9940	9244	N	653090RS3N2255E0N	653090RS3N2255DDN	653090RS3N2255EMN
48x2815	RS	90	3000	79	11875	11044	N	653090RS3W2815E0N	653090RS3W2815DDN	653090RS3W2815EMN
48x2815	RS	90	4000	79	12425	11555	N	653090RS3N2815E0N	653090RS3N2815DDN	653090RS3N2815EMN
48x3375	RS	90	3000	94	14250	13253	N	653090RS5W3375E0N	653090RS5W3375DDN	653090RS5W3375EMN
48x3375	RS	90	4000	94	14910	13866	N	653090RS5N3375E0N	653090RS5N3375DDN	653090RS5N3375EMN
48x575	RS	90	3000	23	3335	3102	N	653090RS5W0575E0N	653090RS5W0575DDN	-
48x575	RS	90	4000	23	3495	3250	N	653090RS5N0575E0N	653090RS5N0575DDN	-
48x1135	RS	90	3000	47	6670	6203	N	653090RS5W1135E0N	653090RS5W1135DDN	653090RS5W1135EMN
48x1135	RS	90	4000	47	6990	6501	N	653090RS5N1135E0N	653090RS5N1135DDN	653090RS5N1135EMN
48x1695	RS	90	3000	70	10005	9305	N	653090RS5W1695E0N	653090RS5W1695DDN	653090RS5W1695EMN
48x1695	RS	90	4000	70	10485	9751	N	653090RS5N1695E0N	653090RS5N1695DDN	653090RS5N1695EMN
48x2255	RS	90	3000	93	13340	12406	N	653090RS5W2255E0N	653090RS5W2255DDN	653090RS5W2255EMN
48x2255	RS	90	4000	93	13980	13001	N	653090RS5N2255E0N	653090RS5N2255DDN	653090RS5N2255EMN
48x2815	RS	90	3000	117	16675	15508	N	653090RS5W2815E0N	653090RS5W2815DDN	653090RS5W2815EMN
48x2815	RS	90	4000	117	17475	16252	N	653090RS5N2815E0N	653090RS5N2815DDN	653090RS5N2815EMN
48x3375	RS	90	3000	140	20010	18609	N	653090RS5W3375E0N	653090RS5W3375DDN	653090RS5W3375EMN
48x3375	RS	90	4000	140	20970	19502	N	653090RS5N3375E0N	653090RS5N3375DDN	653090RS5N3375EMN

Description

Copia come testo Scarica TXT

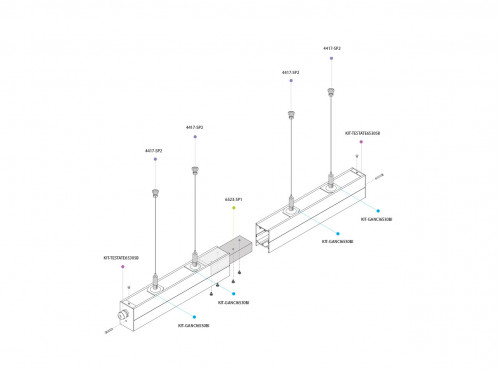

Mounting

Suspended

Light emission

Direct

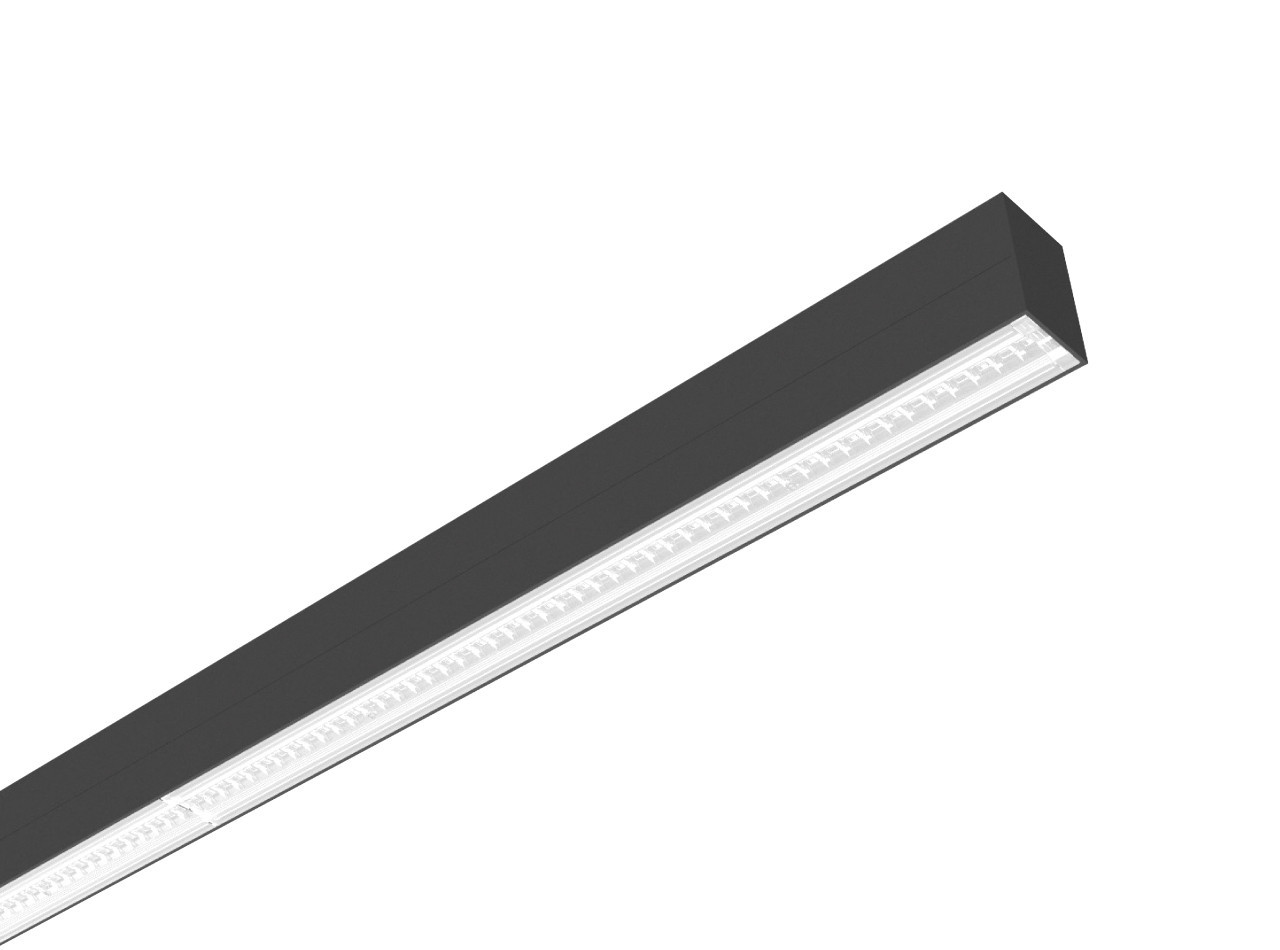

Body

In extruded aluminium, painted with SOLVENT FREE, epoxy polyester powders, thermosetting at 180°C, after phosphate treatment

Optical device

PMMA lens (efficiency: 93%)

Retail symmatrical

Retail asymmatrical

Medium 60° UGR

Wide 90°

Extra wide 110°

Light source

• CRI > 80

• Color tollerance: 3 Step MacAdam

• Lifetime 80000 hrs (L80B20)

Wiring

Class Ist

Feeding 220~240V Ac 50-60 Hz

Normatives

EN 60598-1

EN 60598-2-1

Photobiological safety

EN 62471

IEC/TR 62778

Rischio esente – GR 1

Directives

2014/35/UE

2014/30/UE

UPON REQUEST VERSION

• Dimmable electronic ballast DALI

• Dimmable electronic ballast 1-10V

• Emergency 1/3 hrs

Attachments

Download

ds_6530_LINEAR

Data Sheet: LINEAR - 6530

Download (997.82KB)

Eulumdat: 6530

Download (2.61MB)

Search

LINEAR

Download

Data sheet

Photometries

Description

Attachments

Download

ds_6530_LINEAR

Eulumdat: 6530

Our Products

About us

New Account Register

LINEAR

Download

Data sheet

Photometries

Description

Attachments

Download

ds_6530_LINEAR

Eulumdat: 6530

Existing Account Login Login to your account

Reset Password

New Account Register
