| Dimension | Optics | CRI | K | Watt | Lumen In | Lumen Out | Color | Cod. EL | Cod. DALI | Cod. EM |
|---|---|---|---|---|---|---|---|---|---|---|
| 650x650 | 60° | 80 | 3000 | 97 | 19140 | 14983 | B | 86157WW60E0B4 | 86157WW60DDB4 | 86157WW60EMB4 |
| 650x650 | 60° | 80 | 4000 | 97 | 20240 | 15682 | B | 86157NW60E0B4 | 86157NW60DDB4 | 86157NW60EMB4 |
| 650x650 | RS | 80 | 3000 | 97 | 23925 | 14983 | B | 86157WWRSE0B4 | 86157WWRSDDB4 | 86157WWRSEMB4 |
| 650x650 | RS | 80 | 4000 | 97 | 25300 | 15682 | B | 86157NWRSE0B4 | 86157NWRSDDB4 | 86157NWRSEMB4 |
| 650x650 | RA | 80 | 3000 | 97 | 19140 | 14983 | B | 86157WWRAE0B4 | 86157WWRADDB4 | 86157WWRAEMB4 |
| 650x650 | RA | 80 | 4000 | 97 | 20240 | 15682 | B | 86157NWRAE0B4 | 86157NWRADDB4 | 86157NWRAEMB4 |
| 650x650 | 60° | 80 | 3000 | 121 | 23925 | 18729 | B | 86157WW60E0B5 | 86157WW60DDB5 | 86157WW60EMB5 |
| 650x650 | 60° | 80 | 4000 | 121 | 25300 | 19602 | B | 86157NW60E0B5 | 86157NW60DDB5 | 86157NW60EMB5 |
| 650x650 | RS | 80 | 3000 | 121 | 19140 | 18729 | B | 86157WWRSE0B5 | 86157WWRSDDB5 | 86157WWRSEMB5 |
| 650x650 | RS | 80 | 4000 | 121 | 20240 | 19602 | B | 86157NWRSE0B5 | 86157NWRSDDB5 | 86157NWRSEMB5 |
| 650x650 | RA | 80 | 3000 | 121 | 23925 | 18729 | B | 86157WWRAE0B5 | 86157WWRADDB5 | 86157WWRAEMB5 |
| 650x650 | RA | 80 | 4000 | 121 | 25300 | 19602 | B | 86157NWRAE0B5 | 86157NWRADDB5 | 86157NWRAEMB5 |
Mountings:
• Suspended fitting
• Surface mounted fitting

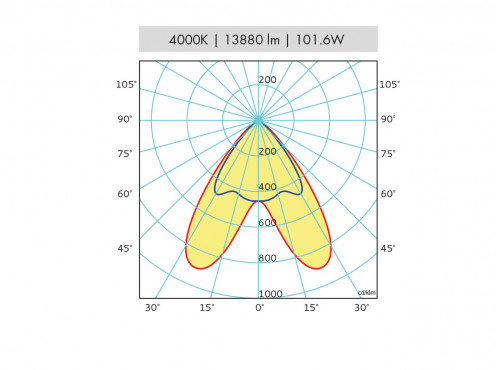

Light emission:
Direct
Symmetric

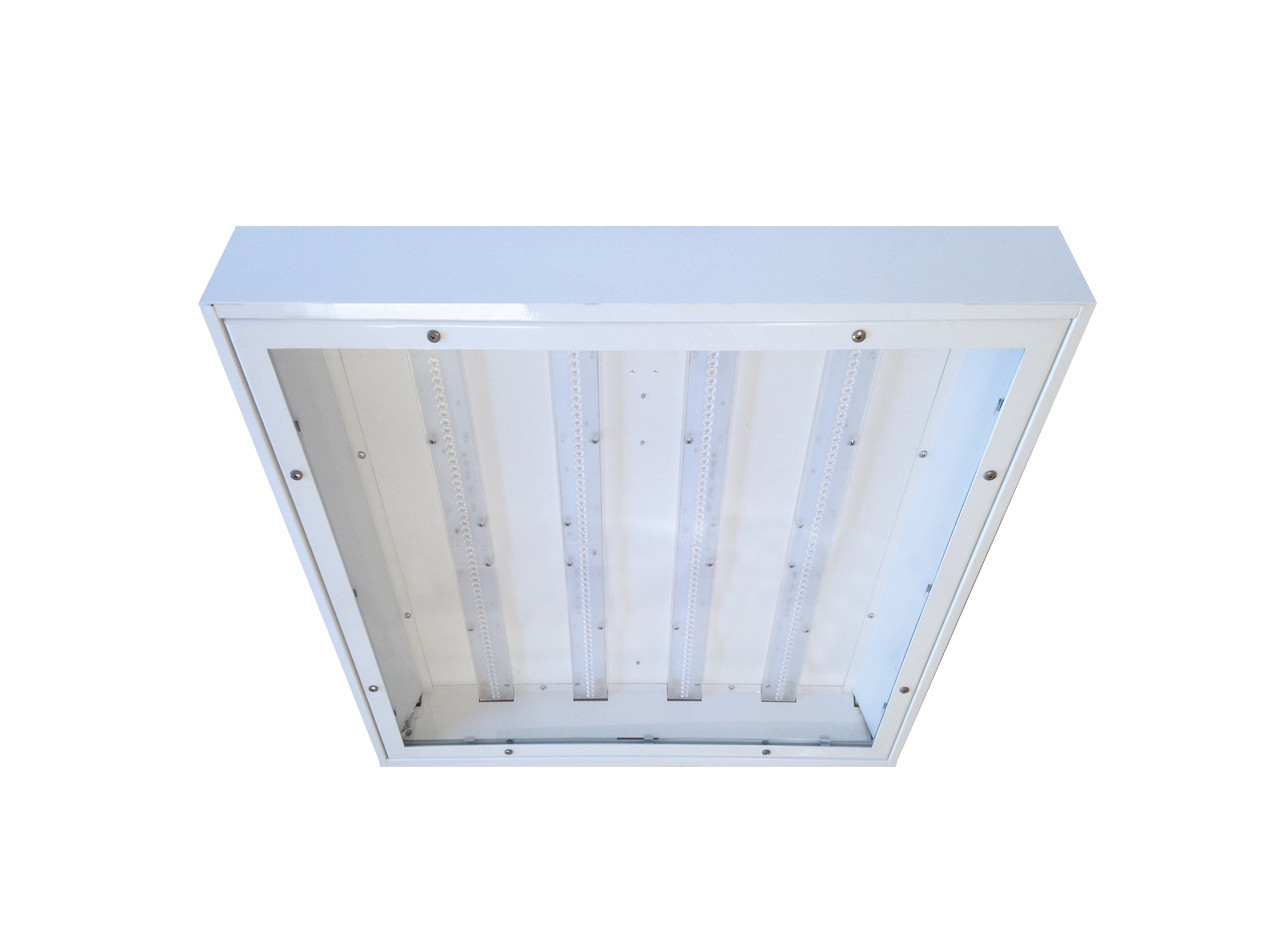

Body:
In sheet steel, painted with SOLVENT FREE, semi-bright white epoxy polyester powders, thermosetting at 180°C, after phosphate treatment
Optical device:
Shield in transparent toughened glass.
LED (with lens):
• 60° Standard
• Symmetrical Retail
• Asymmetrical Retail
Light source:
• CRI ≥80 Ra
• 3000 K
• 4000 K
• Colour tolerance 2 MacAdam (2 SDCM)
• Lifetime (Ta=25°C): 50000h L80B10
Wiring:
Class I
Feeding 220~240V / 50-60 Hz
Performance data:
• Protection level: IP65
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Directives:
2014/35/UE
2014/30/UE
VERSIONS UPON REQUEST
• Dimmable electronic ballast
• DALI dimmable electronic ballast (if possible)
• Emergency unit 1h/3h
• RA90
• RA90
