Track installation Direct light emission Compliant with the directive for electromagnetic compatibility 89/336 / EEC; 73/23 / EEC Insulation class: I Flammable surfaces suitable for installation
Chromatic rendered index ≥90 Color tolerance: 3 Lifetime: 50000 hours Photobiological risk: 1 Degree of protection: IP20
Mountings:

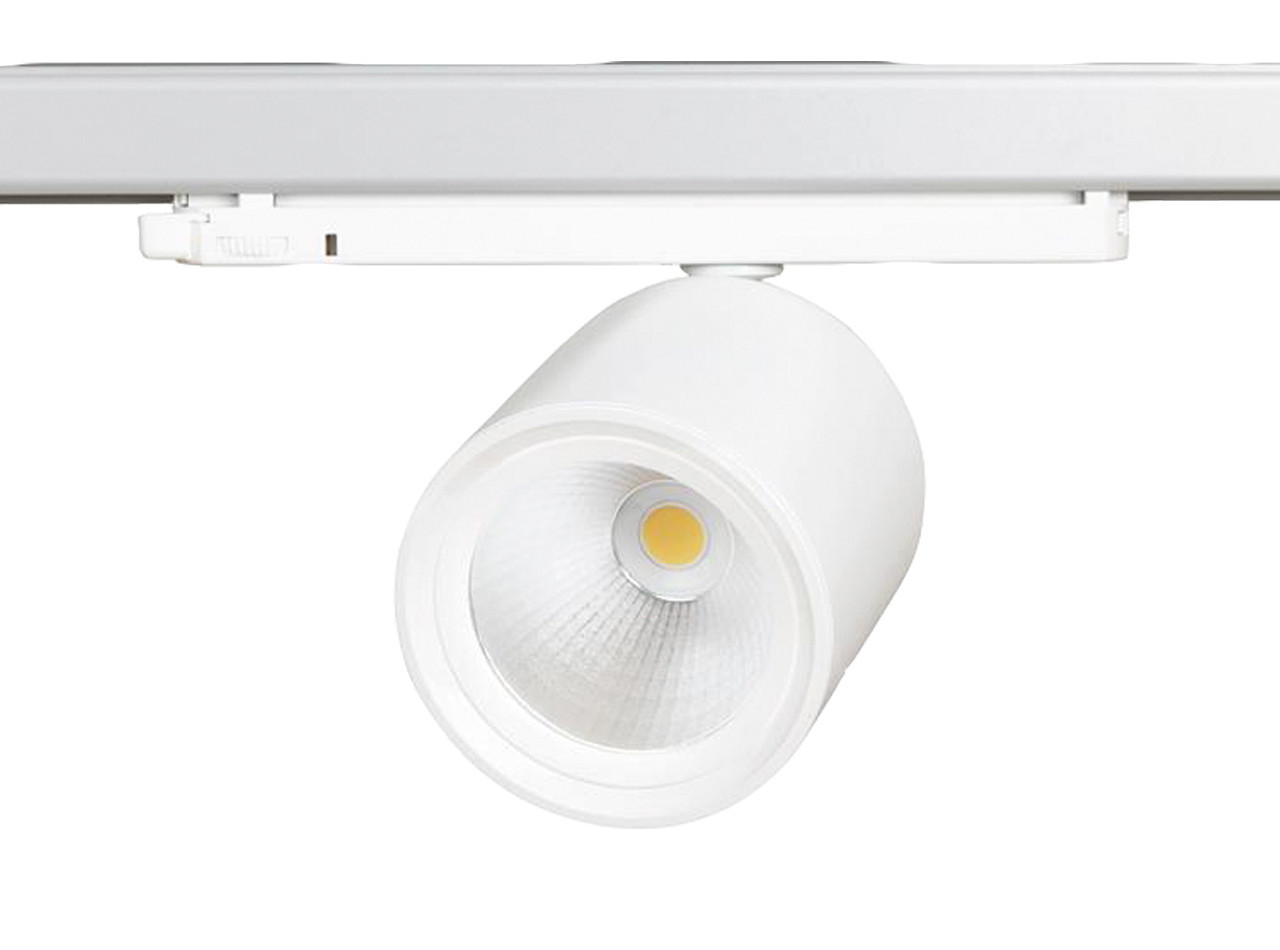

Electrick track spotligths
Light emission:
Direct
Symmetric
Adjustable
Projector body:
In die-cast aluminum white (B), black (N) and grey (G)
Optical device:
Reflector anodized aluminium:

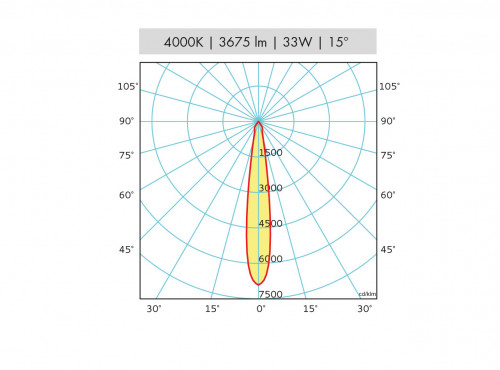

• Spot: 15°

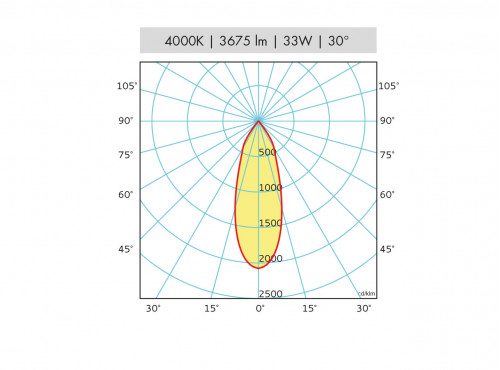

• Wide flood: 30°

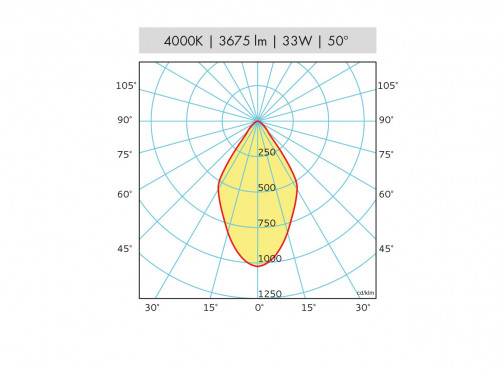

• Very wide flood: 50°
Light source:
LED CRI ≥ 90 Ra
Wiring:
Class I
Feeding 220~240V/50-60Hz
Performance data:
2 Step Mac Adam
Protection level IP20
Lifetime 50000 h - L80B10
Exempt risk – GR 1
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-5
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Directives:
2014/35/UE
2014/30/UE
VERSIONS ON REQUEST:
• Color temperature 2700K / 5000K
• DALI dimmable electronic ballast

Download

Eulumdat: POSITANO

Eulumdat: POSITANO

Download (7.34k)

ds_POSITANO

Data Sheet: POSITANO

Download (829.67k)
