Suspension installation Ceiling installation Direct light emission Compliant with the directive for electromagnetic compatibility 89/336 / EEC; 73/23 / EEC Insulation class: I Flammable surfaces suitable for installation
Chromatic rendered index≥80 Chromatic rendered index≥90 Color tolerance: 3 Lifetime: 80000 hours Photobiological risk: 0 Glare index: UGR≤19 Degree of protection: IP20
Mountings:
• Surface mounted fitting

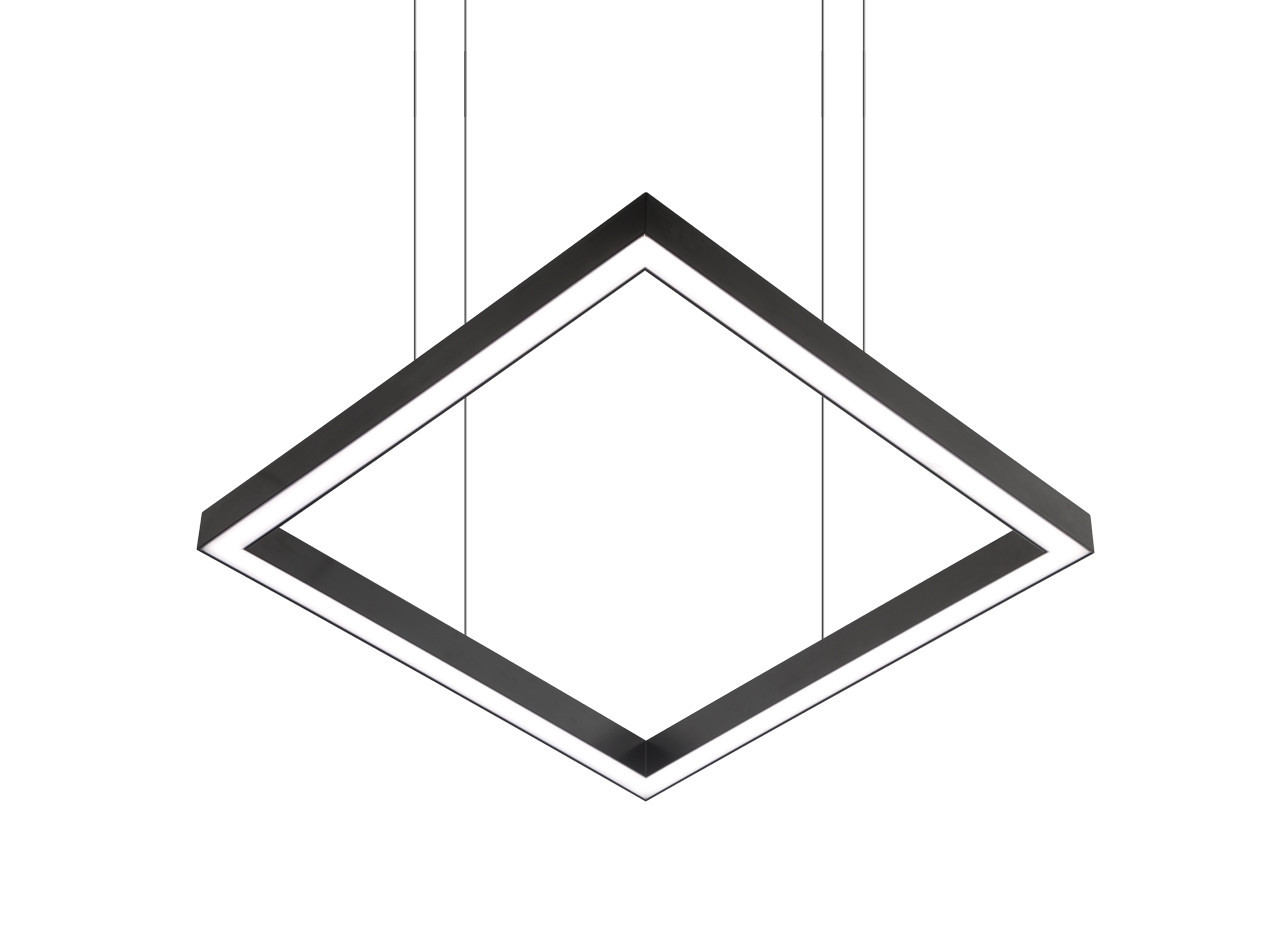

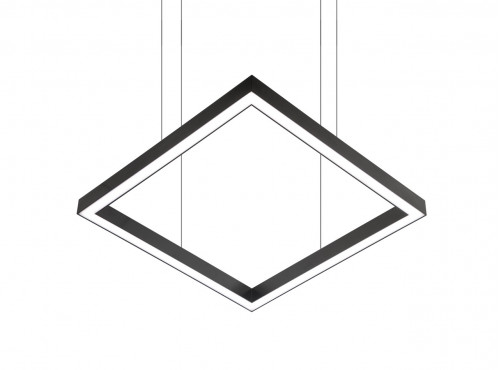

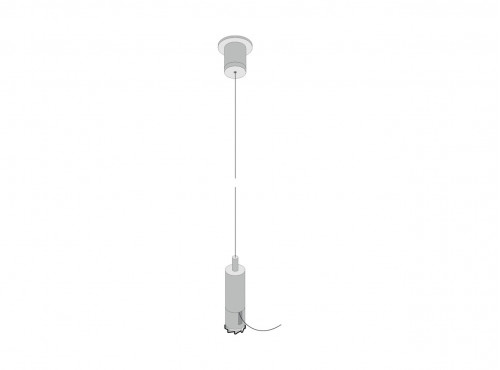

• Suspended fitting with acc. 4406 + 4417-SP2
Light emission:
Direct
Symmetric
Body:
In extruded aluminium, painted with SOLVENT-FREE, white, black, grey or other colours upon request, epoxy polyester powders, thermosetting at 180°C, after phosphate treatment.
Removable gear tray on which the wiring components are mounted, in extruded aluminium, painted with SOLVENT-FREE, white, epoxy polyester powders, thermosetting at 180°C, after phosphate treatment.
Optical device:
Transparent microprismatic polycarbonate diffuser
Light source:
LED CRI ≥80 Ra
• 3000K
• 4000K
• Color tolerance 3 MacAdam (3 SDCM)
Wiring:
Class I
Feeding 220~240 V / 50-60 Hz
Performance data:
Protection level IP20
Lifetime (Ta=25°C) 50000h L80B10
UGR ≤19
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Exempt risk – GR 0
Directives:
2014/35/UE
2014/30/UE
VERSIONS UPON REQUEST (if possible)
• Dimmable electronic ballast
• DALI dimmable electronic ballast
• Emergency unit 1h
• Ra 90
