Built-in installation Direct indirect light emission Compliant with the directive for electromagnetic compatibility 89/336 / EEC; 73/23 / EEC Insulation class I Flammable surfaces suitable for installation
Chromatic rendered index ≥80 Chromatic rendered index ≥90 Color tolerance - 3 Lifetime: 80000 cc Photobiological risk Glare index Degree of protection IP20
Mountings:
Built-in installation
In false ceiling - plasterboard
Light emission:
Direct
Symmetric
Body
In extruded aluminium, painted with SOLVENT-FREE, white or black, epoxy polyester powders, thermosetting at 180°C, after phosphate treatment
Wiring plate
Removable wiring plate in extruded aluminum painted with white-colored epoxy polyester powders, thermosetting at 180°C, with surface phosphating pretreatment
Header
In printed aluminum interlocking

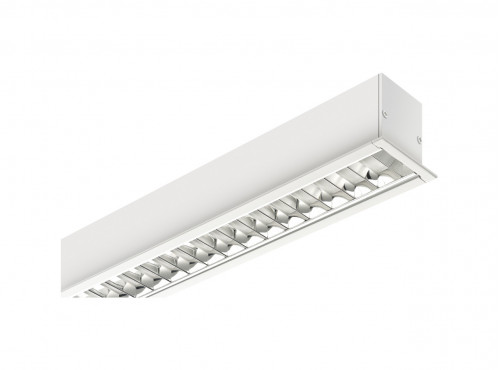

Optical device
Darklight lamellar optics, double parabolicity in aluminum specular anti-reflective, antiroidescent, with parabolic lights closed superiorly, with very low luminance
Protective screen in PMMA opal 0.2mm
Light source:
LED
CRI ≥ 80
3000K
4000K
Color tolerance: 3 - MacAdam (3 SDCM)
Lifetime: 80000 hours - L80B20
Wiring:
Class I
Power supply 220 ~ 240 V / 50-60 Hz
Performance:
• Degree of protection: IP20
• UGR ≤ 19
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Exempt risk - GR 0
Directives:
2014/35/UE
2014/30/UE
VERSIONS ON REQUEST
• DALI dimmable electronic ballast
• Emergency complex 1h
• LED CRI ≥ 90

Download

ds_9818_VF-A_PAR99

Data Sheet: VECTOR FRAME A - 9818 PAR99

Download (680.79KB)

Eulumdat: 9818 PAR

Download (126.49KB)
