Suspension installation Direct indirect light emission Compliant with the directive for electromagnetic compatibility 89/336 / EEC; 73/23 / EEC Insulation class I Flammable surfaces suitable for installation
Chromatic rendered index ≥80 Chromatic rendered index ≥90 Color tolerance - 3 Lifetime: 80000 hours Photobiological risk Degree of protection IP20
Mountings:

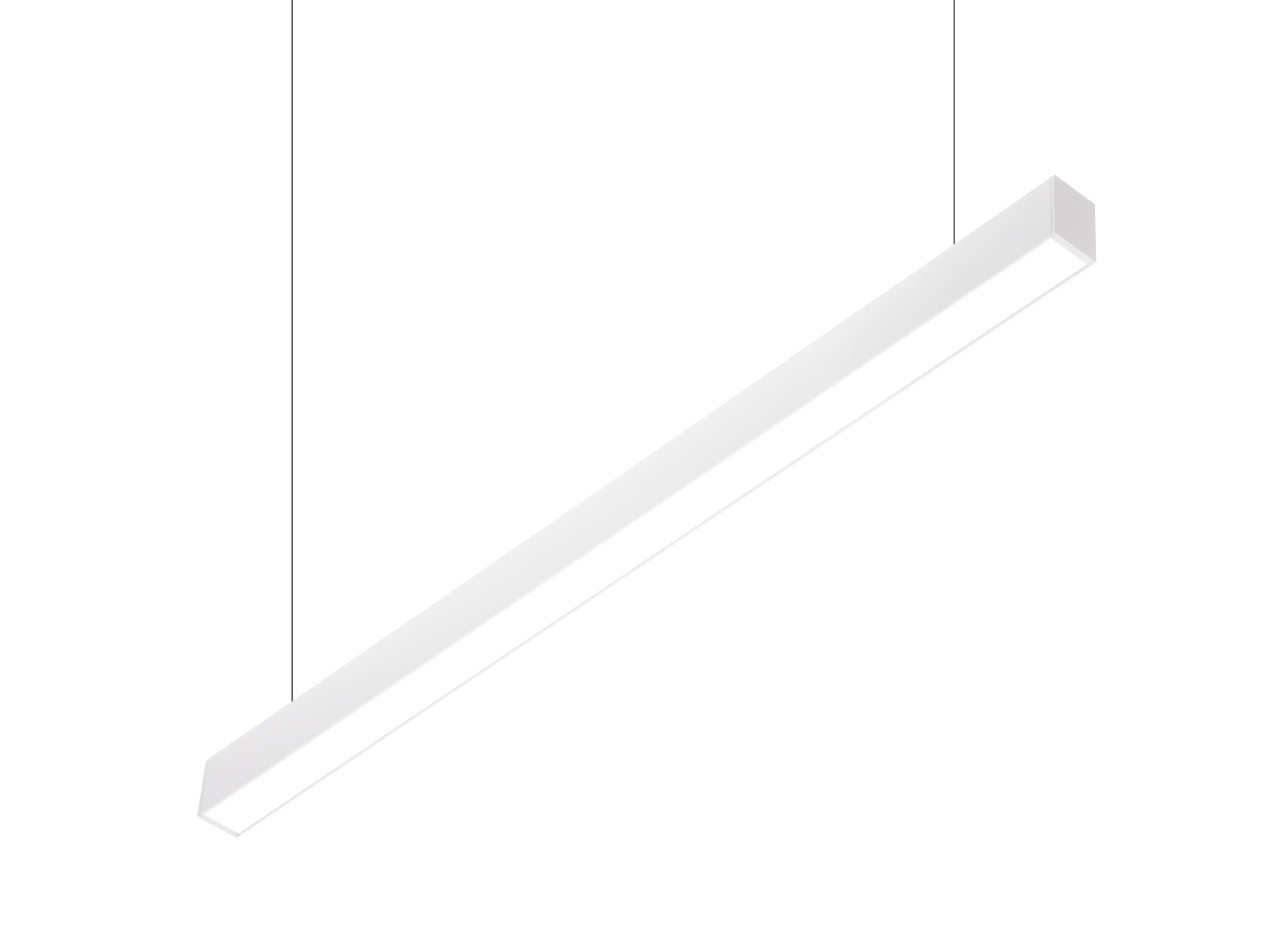

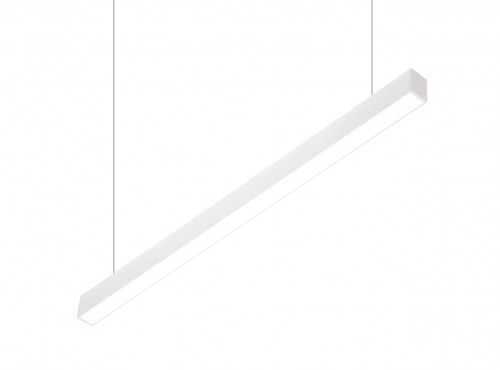

Suspension installation

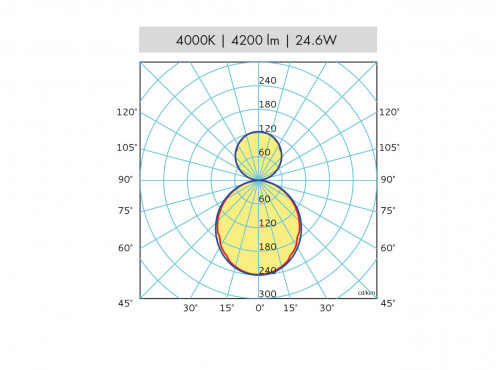

Light emission:
Direct / Indirect
Symmetric
Body
In extruded aluminium, painted with SOLVENT-FREE, white or black, epoxy polyester powders, thermosetting at 180°C, after phosphate treatment
Wiring plate
Removable wiring plate in extruded aluminum painted with white-colored epoxy polyester powders, thermosetting at 180°C, with surface phosphating pretreatment
Header
In printed aluminum interlocking
Optical device
Opal polycarbonate diffuser - (Direct)
Opal polycarbonate diffuser - (Indirect)
Light source:
LED
CRI ≥ 80
3000K
4000K
Color tolerance: 3 - MacAdam (3 SDCM)
Lifetime: 80000 hours - L80B20
Wiring:
Class I
Power supply 220 ~ 240 V / 50-60 Hz
Performance:
• Degree of protection: IP20
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Exempt risk - GR 0
Directives:
2014/35/UE
2014/30/UE
VERSIONS ON REQUEST
• DALI dimmable electronic ballast
• Emergency complex 1h
• LED CRI ≥ 90

Download

ds_9820_VA_D-I_OP

Data Sheet: VECTOR A DI - 9820 OP

Download (651.9k)

Eulumdat: 9820 OP

Download (4.04M)
