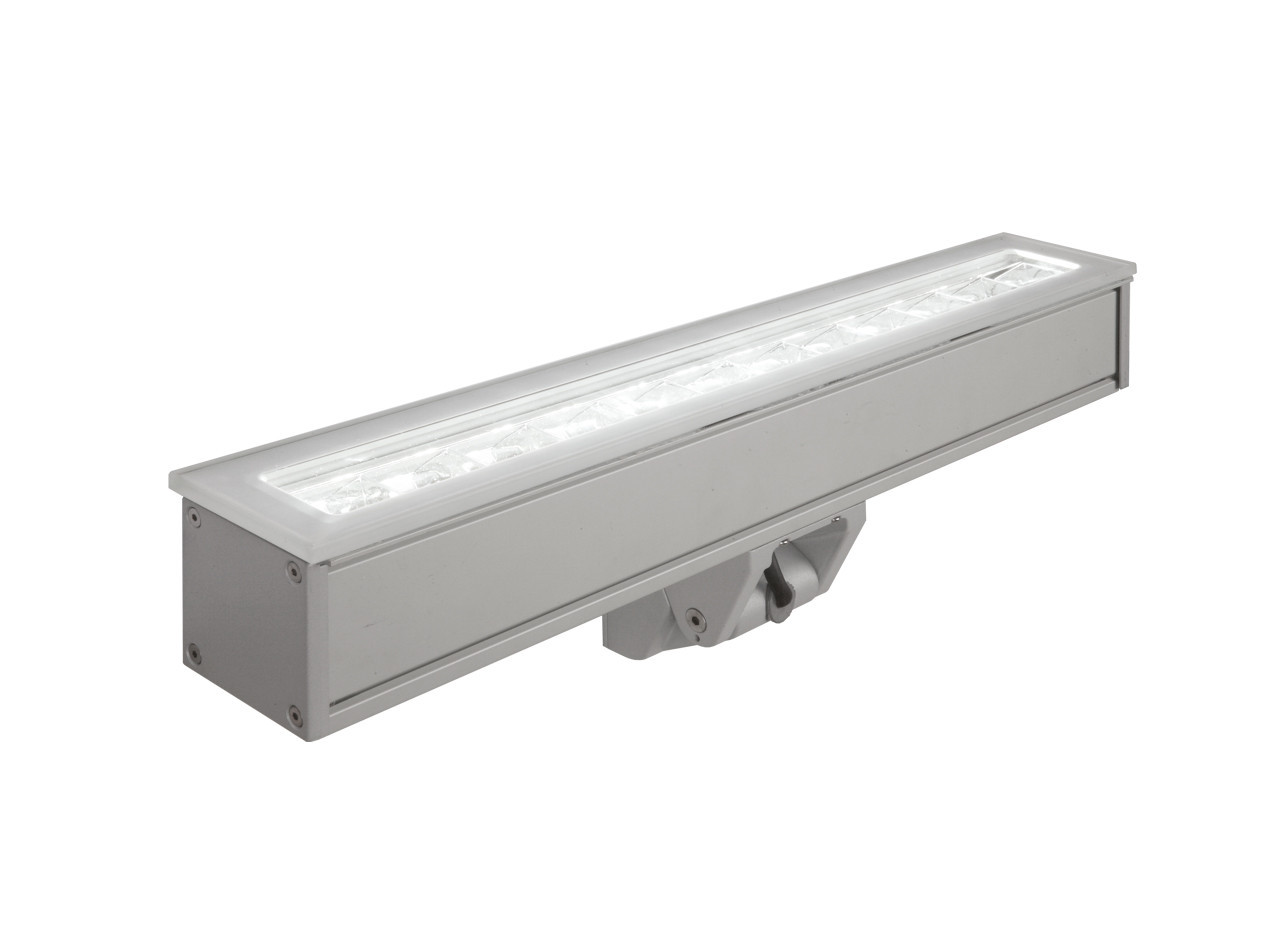

SPOT LED

2038
Chiedi informazioni
Wall installation Wall Washer - light emission Energy rating Compliant with ROSH and REACH directives Compliant with the directive for electromagnetic compatibility 89/336 / EEC; 73/23 / EEC Insulation class I Flammable surfaces suitable for installation
Chromatic rendered index≥80 Color tolerance - 3 Lifetime: 80000 hours Photobiological risk Grado di protezione: IP67 Impact resistance Recyclable
Mountings:
Wall luminaire
Light emission:
Direct
Symmetric
Body:
Extruded aluminium UNI EN 573-3 (6060) anodised 15μ, terminal cover in die-cast aluminium EN AB 44300 (copper free), painted in double hand silver polyester powder, subject to an anti-corrosion process
Wiring plate:
Extruded aluminium UNI EN 573-3 (6060) anodised 7μ
Fixing brackets:
Die-cast aluminium EN AB 44300 (copper free), adjustable 90°
Optical device:
Diffuser, 8 mm extra-clear tempered monolithic glass, with grey serigraphy.
Reflector, 99,85% super pure aluminium.
Screws: stainless steel A2.
Gasket: silicone.
Light source:
LED WHITE : 3000 / 4000 / 5000 K
LED life time 50.000 hours to 70% lumen maintenance
Wiring:
Insulation class I
Feeding 220~240 V / 50-60 Hz
Connectors: EPDM IP67 - M12 ø4÷7 mm
Cable: H05RN-F 3x1mm - 50 cm pre-assembled
Performance data
Protection level: IP67
Impact energy: IK 9 - 10J
Mark:
CE
Regulations:
EN 60598-1
EN 60598-2-13
EN 62471
Directives:
2014/35/UE
2014/30/UE
